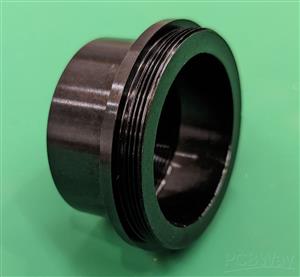

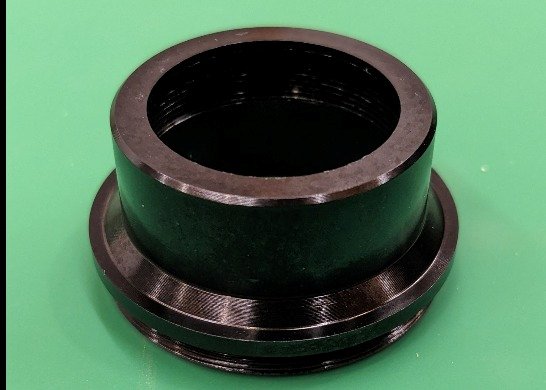

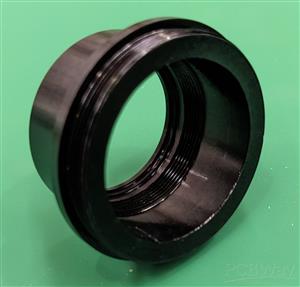

LightObject Mirror Reverse Adapter

This adapter is designed to reverse the orientation of the mirror in the LightObject mirror mount for CO2 laser cutters. Doing so flips the knobs to the other side of the part, enabling you to design a more compact laser enclosure.

This adapter preserves both the M27 x 0.75 internal thread to install the original retainer ring that came with the part and the M36 x 0.75 external thread used to screw into the kinematic base.

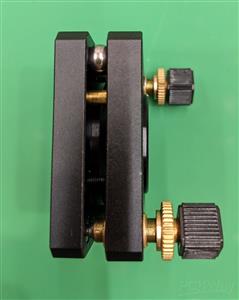

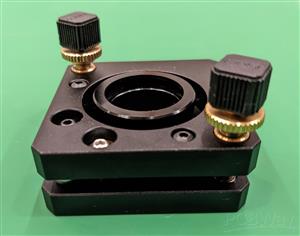

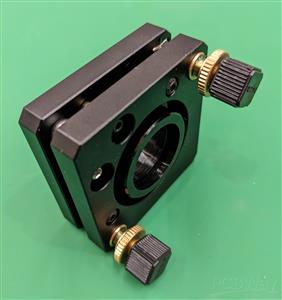

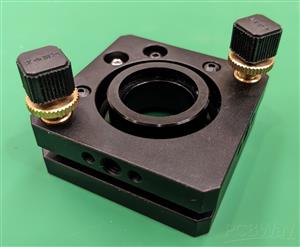

Light Object 25mm Mirror Mount
Original Onshape design file

CAD-Custom parts and enclosures

C-S52W777629A_Mirror Offset Adapter - MIrror Offset Adapter

C-S52W777629A_Mirror Offset Adapter - MIrror Offset Adapter.step

MIrror Offset Adapter Drawing 1.pdf

Apr 15,2025

263 views

LightObject Mirror Reverse Adapter

an adapter designed to flip the mirror orientation in the 25mm LightObject mirror holder for CO2 laser cutters.
