Description

harp.device.lickety-split.cable-buffer v1.0.0

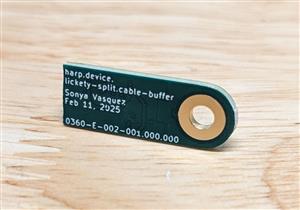

This is the conductive sensing element that makes an electrical connection to the water-dispensing lick tube. The exposed gold part on the bottom surface of the PCBA will need to connect to a conductive stainless steel lick tube.

Schematic and Layout

Github Repository

https://github.com/AllenNeuralDynamics/harp.device.lickety-split

CAD-Custom parts and enclosures

onshape repository with enclosure

https://cad.onshape.com/documents/4d37413078aa7feab983c8d4/w/1e6d2691e0030a15f256b323/e/c063162b8d378814b8a5bd30?renderMode=0&uiState=68ace98496eb3e56aa63f636

Download Gerbers Download BOM(Bill of materials)

Jul 10,2025

662 views

harp.device.lickety-split.cable-buffer v1.0.0

4 Layers PCB 38.5 x 42 mm FR-4, 1.6 mm, 1, Immersion gold, Green Solder Mask, White silkscreen

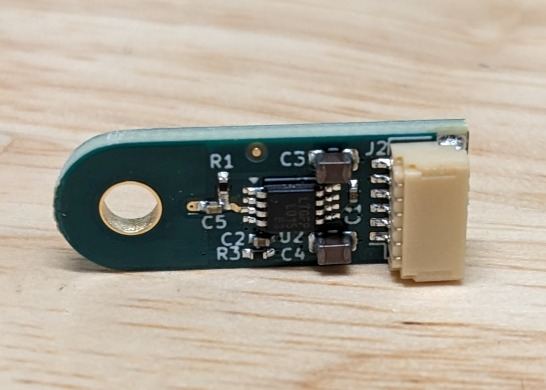

Sensing element that attaches to a metal lick tube for detecting rodent licks. Pairs with harp.device.lickety-split main board.

662

Published: Jul 10,2025

Standard PCB

Download Gerber file 13

BOM(Bill of materials)

Centroid file

PCBWay Donate 10% cost To Author

File Last Updated: 2025/08/26 (GMT+8)
