Description

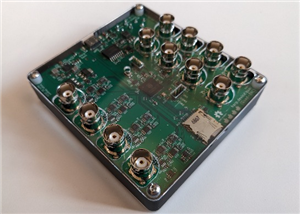

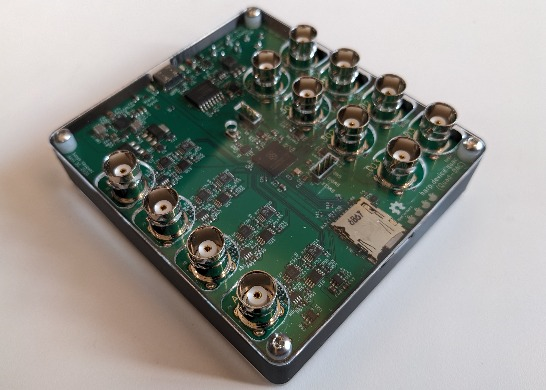

harp.device.quac (quad - DAC)

Think of it as a 4-channel, ultrasonic MP3 player.

The "Quac" board is a Digital to Analog Converter packed with features, including:

High Fidelity Digital Synthesis at 16-bit, +/-10V, and 500KHz update rate
4-output channels
play waveforms from an SD Card or from one of the built-in primitive waveform generators (sine, trapezoid/triangle)
Computer-controlled with fully worked examples in Python as a standard "Harp"-compliant device
Software or External Triggers available to trigger waveforms

This board has many use cases including:

analog galvanometer control
analog laser power modulation
ultasonic speaker waveform synthesis

Code

Firmware

https://github.com/AllenNeuralDynamics/harp.device.quac/tree/main/firmware

Schematic and Layout

Schematic / Layout

https://github.com/AllenNeuralDynamics/harp.device.quac/tree/main/hardware

CAD-Custom parts and enclosures

Enclosure CAD Model (OnShape)

https://cad.onshape.com/documents/ead77968efe820b4ecd131c1/w/59637a9e969f17bdfb8f8a49/e/516871a36164952787a658eb?renderMode=0&uiState=6a9b4d63c8796f3fb59185e1

Download BOM(Bill of materials)

Sep 22,2026

15 views

harp.device.quac (quad - DAC)

4 Layers PCB 100 x 190 mm FR-4, 1.6 mm, 1, Immersion gold, Green Solder Mask, White silkscreen

A 4-channel, ±10V, 16-bit Digital to Analog Converter with a 500KHz update rate that plays waveforms from an SD card.
