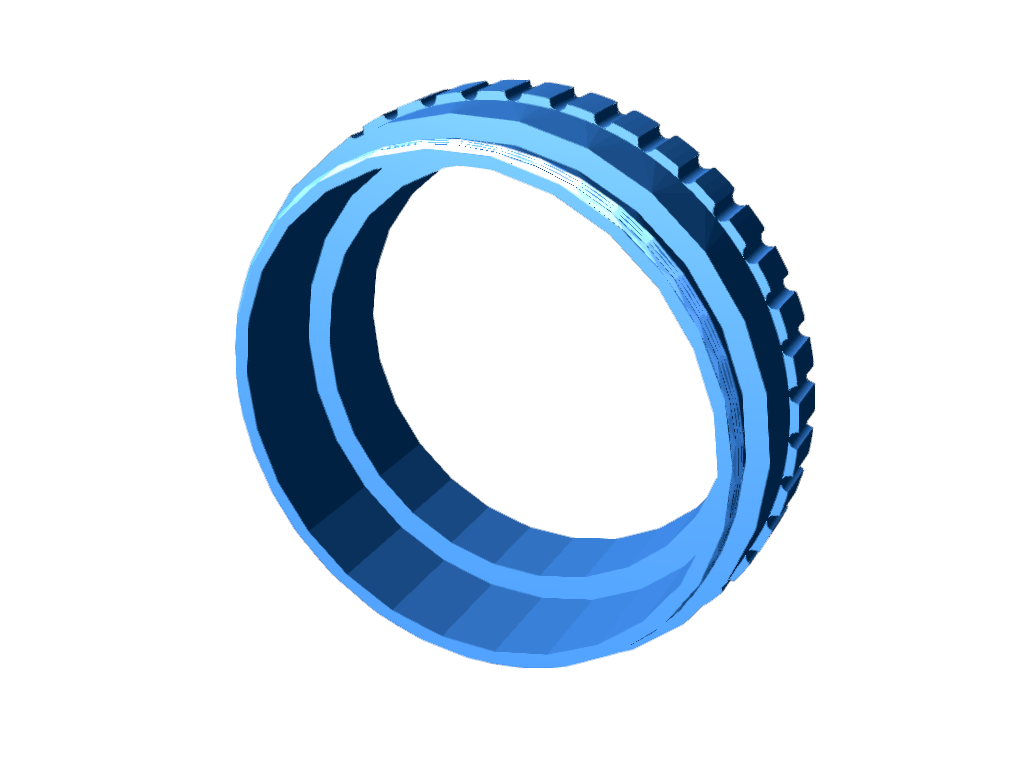

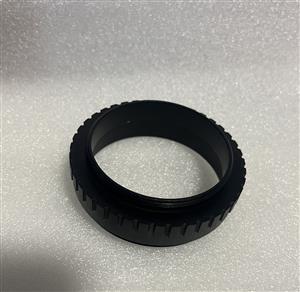

Telescope Adaptor for Vixen FL55SS. Male M60 to Male M54 ring adaptor
The Vixen FL55SS uses a non-standard M60F connector. This adaptor takes it to M54, used by many common full frame cooled camera from ZWO or QHY.
The back focus for the telescope is 63.5mm when used with the Flattener and Reducer.
This adaptor will take up 12.5mm.
The Agena Astro 54mm CAA takes up 13.5mm
The 54mm ZWO 2" Filter drawer or EFW takes up 20mm
The QHY or ZWO camera takes up 17.5mm
Total is 63.5mm.
This eliminates the need for another other size adjustment and back focus adjusment adaptor
Telescope Adaptor for Vixen FL55SS. Male M60 to Male M54 ring adaptor
