The teleinfo component allows you to retrieve data from a French electrical counter using Teleinformation. It works with Linky electrical counter but also legacy EDF electrical counter.

This project is a DIY open-source Teleinfo (TIC) decoder for French Linky electricity meters, powered by an ESP32. Unlike commercial Zigbee modules which are self-powered and forced to limit their data transmission frequency to avoid power crashes, this board is independently powered.

It reads the Linky TIC stream continuously in real-time and publishes the data instantly via MQTT to Home Assistant.

Key Features:

• Real-time updates: No polling limits or delay, ideal for reactive home automation.
• Native Home Assistant Discovery: Plug-and-play integration via MQTT Discovery (automatic entities creation for energy, power, current, and voltage).
• Robust isolation: Optocoupler circuit to safely isolate the Linky meter from the ESP32

This simple electronic assembly with an optocoupler and a resistor could let you retrieve detailed power consumption or power production. There are plenty of examples on the web. But the main reference regarding linky teleinfo was provided by Charles on his blog a few years ago.

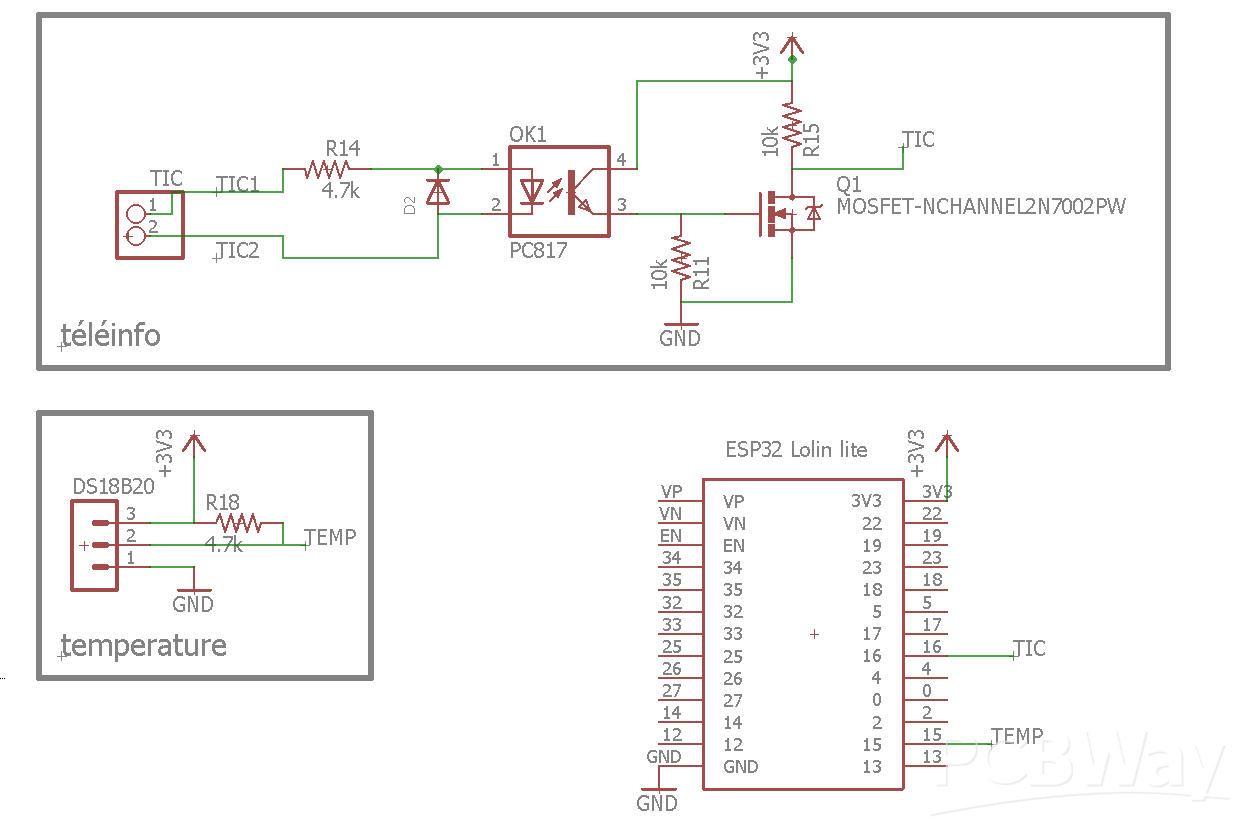

Schematics

I have reproduced Charles'design and coupled it to my favorite ESP32 micro controller !

This schemactic seems simple (and it is) but needs clarifications !

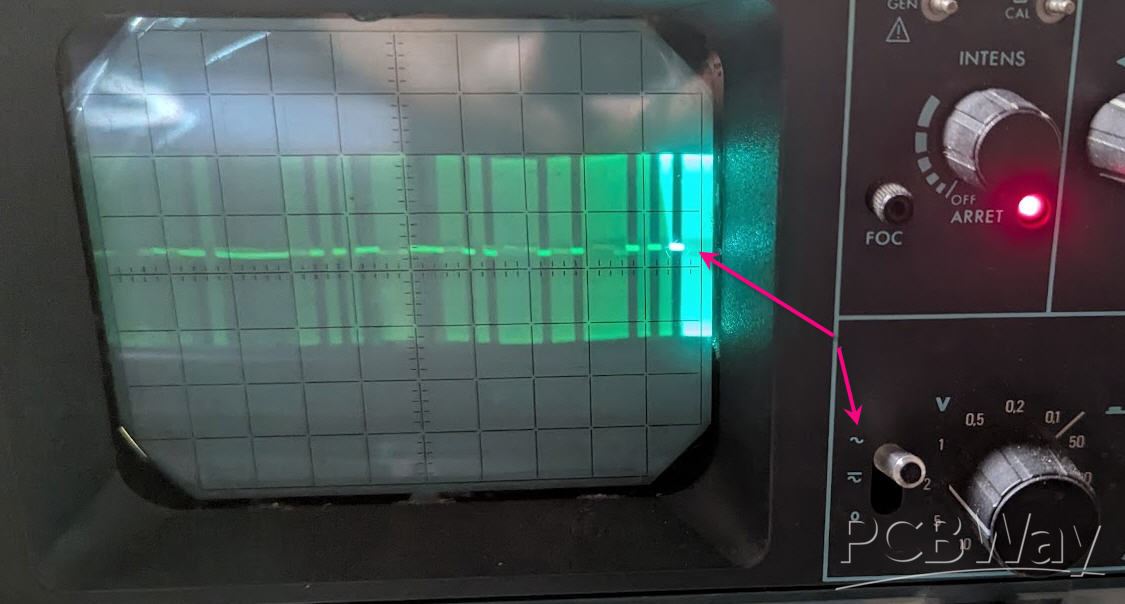

TIC signal is a 50kHz modulated UART signal, so that when plugging a scope you will recognize the modulation but not the bits !

The opto is there to isolate the MCU from this AC 10V TIC. Furthermore, the power delivered by the linky is very limited by specification

(ERDF-NOI-RES_13E) Linky can deliver less than 130 mW meaning that R14 resistor has to be relatively high (2k to 4.7k is the sweet spot).

This will protect the linky but also the LED of the optocoupler.

Power delivered by the opto is thus also weak ; and R13 cannot be too small if you want a clean demodulated signal. 10k is the sweet spot (4.7k does not work on my linky !)

Finally the serial signal must be amplified to get the logic level of your MCU. Q1 mosfet does the trick ! (Any Mosfet will work)

As this device will be integrated into my Home Assistant system, I have added a DS18B20 temperature sensor to monitor my garage ! This is of course totally optionnal.

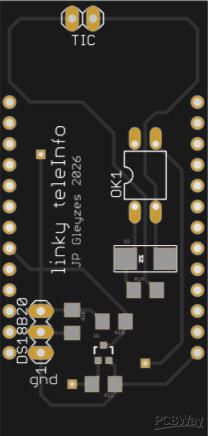

PCB

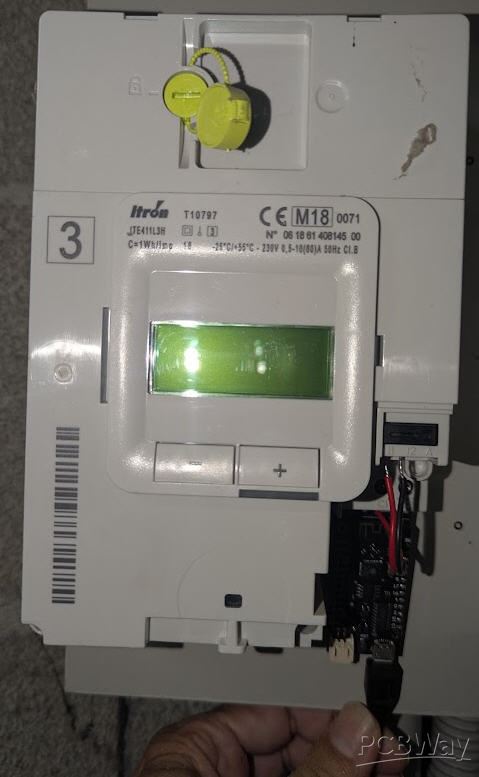

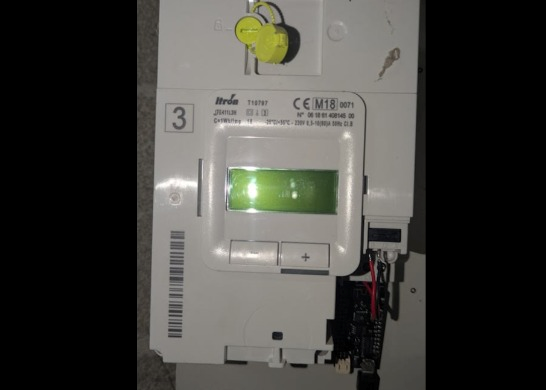

The PCB was designed to enter into the linky (under the green cover) and with only the USB plug accessible below it. The system will thus be totally hidden under the cover, but you can plug a USB phone charger to power it !

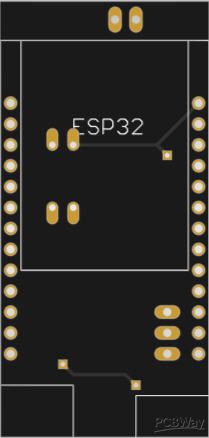

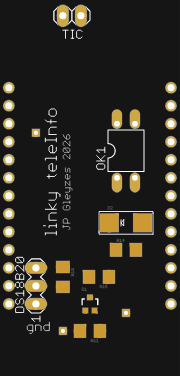

The ESP32 goes on the top side, while all the other components go to the bottom side.

PCB can be bought at PCBWay directly from this project page.

It is "tiny" but not compact, so that soldering is easy.

The PCB was kindly sponsored by PCBWay and is as usual of excellent quality.

and if you are new to PCBWay please use this affiliated link : https://pcbway.com/g/o35z4O

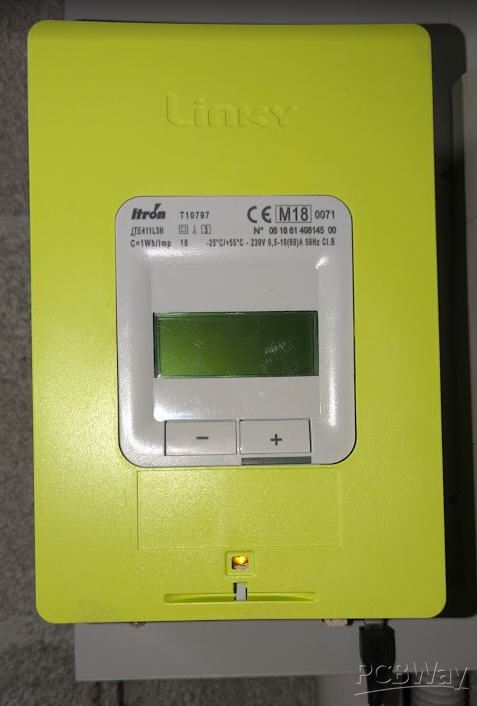

Result is a clean and compact setup.

To be continued
