Fabio Battaglia
ITALY • + Follow
Tools, APP Software Used etc.
|
KiCADKicad
|
Description
TK2000 Bus extender

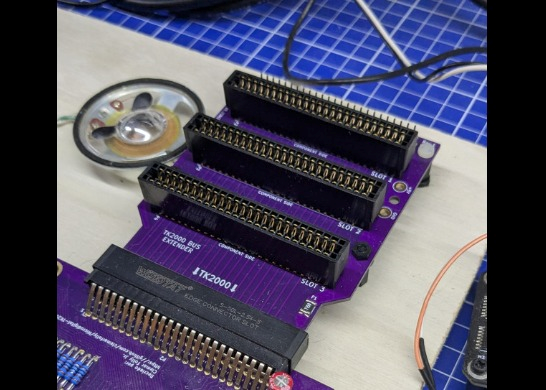

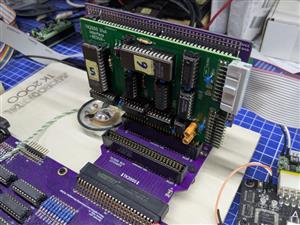

A bus extender for the TK2000 home computer, allowing up to 3 expansion cards to be installed.
It is advisable to order the board as at least ENIG finished, and with an edge beveling of 45°.
Once built, the board needs standoffs to avoid stressing the computer's bus connection.
Schematic and Layout
https://codeberg.org/hkzlab/TK2000_bus_extender
Aug 12,2025
199 views
TK2000 Bus extender
A bus extender for the TK2000 home computer
199
1
8
Published: Aug 12,2025
Standard PCB
Download Gerber file 3
PCBWay Donate 10% cost To Author
File Last Updated: 2025/09/23 (GMT+8)
File update record
2025-09-2323:09:13
Gerber file is updated.
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
