DELTA Keyboard - key switch plate

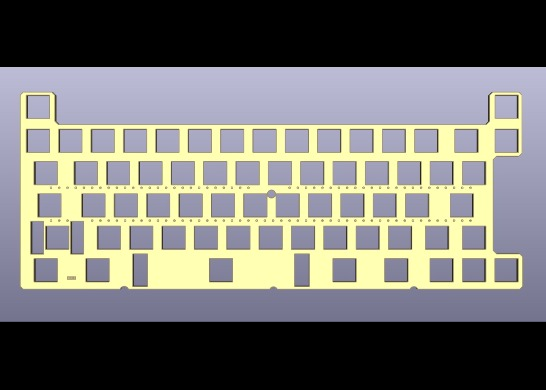

This PCB is a plate to add stability to the keys when assembling and using the DELTA Redux Keyboard, which you can find as another shared project of mine on here.
You just need to clip the keys into this PCB, then place them on top of the keyboard base, and solder them.
This board is purely for structural stability: it serves no further purpose and has no components to be soldered on top of it.
Schematic and Layout
https://codeberg.org/hkzlab/DELTA_Redux_KB
Dec 15,2025
9 views
DELTA Keyboard - key switch plate
Optional keyswitch plate for improved stability when using the DELTA Redux keyboard
9
0
0
Published: Dec 15,2025
Standard PCB
Download Gerber file 0
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
