Description

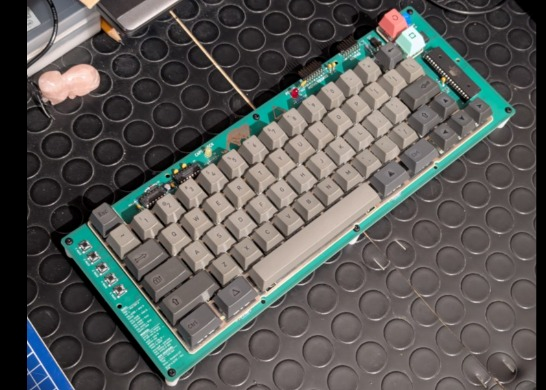

DELTA Redux ASCII keyboard
ASCII Keyboard meant to be used with the DELTA Redux Apple IIe clone computer.
It
- uses Cherry-MX compatible switches
- supports regulable key repeat
- supports the AKD signal
- has custom "extra" keys with macros
- supports upper and lowercase keys
- supports an external keypad
It can be coupled with its key-plate (a separate project) for added structural stability
Schematic and Layout
https://codeberg.org/hkzlab/DELTA_Redux_KB
Dec 15,2025
10 views
DELTA Redux ASCII keyboard
ASCII Keyboard for the DELTA Redux computer, an Apple IIe clone
10
0
1
Published: Dec 15,2025
Standard PCB
Download Gerber file 0
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
