Flaccid Ostrich, a FloppyEmu clone

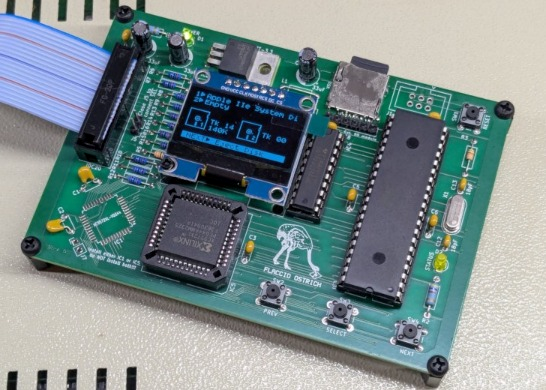

The Flaccid Ostrich is a FloppyEmu Rev.C clone I developed while redrawing the schematic of my FloppyEmu unit for repair purposes. I did not want to create an 1:1 reproduction, so I decided to take a different path, and build a through hole version. You can still use SMD components for easier to obtain ICs and connectors, but they're optional.

It makes for a nice DIY build or it can be a base for other projects (e.g. custom encased units).

Schematic and Layout

https://codeberg.org/hkzlab/Flaccid_Ostrich

Download Gerbers

Jan 30,2026

16 views

Flaccid Ostrich, a FloppyEmu clone

A FloppyEmu (Apple II / Macintosh floppy disk emulator) compatible board, meant for DIY builds with THT components.
