Surface Mount Connector Tester
Manually soldering FFC connectors with a fine pitch using a hot air gun can be tedious to test. This Arduino STM32 project was designed to test connectors with up to 40 pins.
This board will test each pin for:
- continuity of used pins
- expected bridging between pins
- unexpected continuity of unused pins
- unexpected bridging between pins

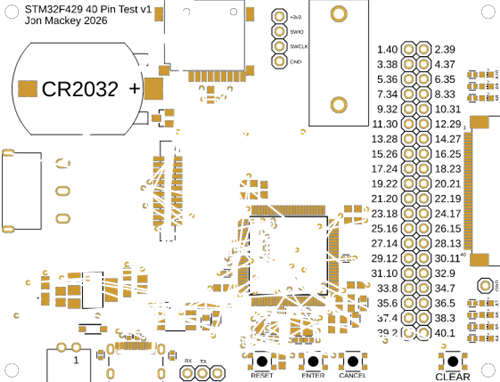

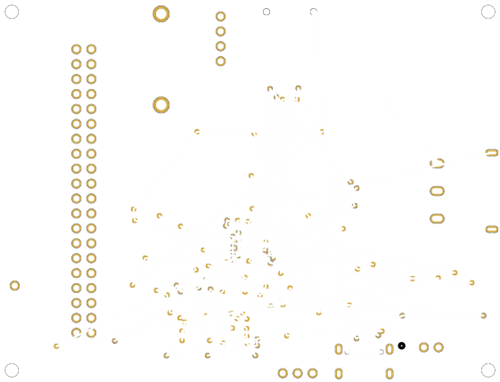

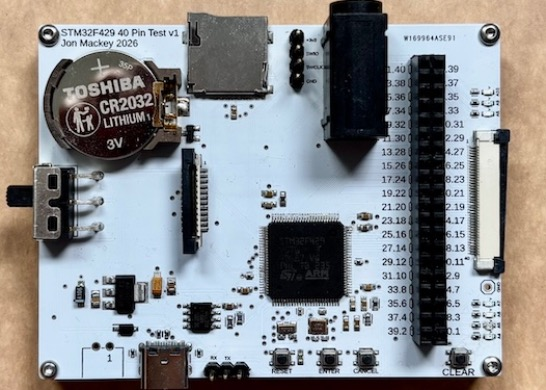

The software is designed to run on the "40 Pin Test" board shown above. This project also requires a 480x320 ILI9488 resistive touch screen connected via a 12 pin FFC cable. I designed three boards that could be used, a 4 inch 480x320 TFT Display board, a 3 inch 480x320 TFT Display board, and an ILI9488 Display Adapter board. The adapter board can be used to convert popular 3 and 4 inch display modules to use a 12 pin FFC cable. Any 480x320 TFT display option will work provided it uses a ILI9488 driver.
For more information see my Instructable here. (This link will be available once the Instructable is published and approved by Autodesk.)
Surface Mount Connector Tester
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
