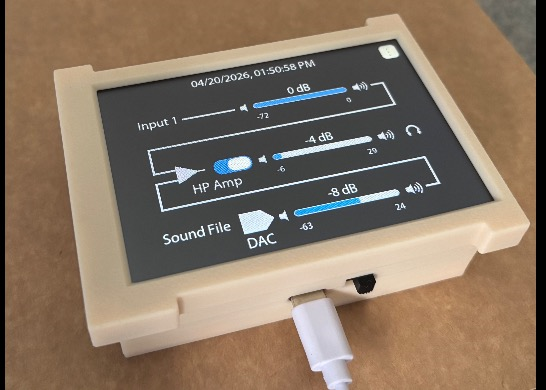

STM32 Audio Codec

2 Layers PCB 80 x 60 mm FR-4, 1.6 mm, 1, HASL with lead, White Solder Mask, Black silkscreen

This is an STM32 board that uses the Texas Instruments TLV320AIC3204 codec

Published: Apr 23,2026

Standard PCB

BOM(Bill of materials)

PCBWay Donate 10% cost To Author

File Last Updated: 2026/04/23 (GMT+8)
