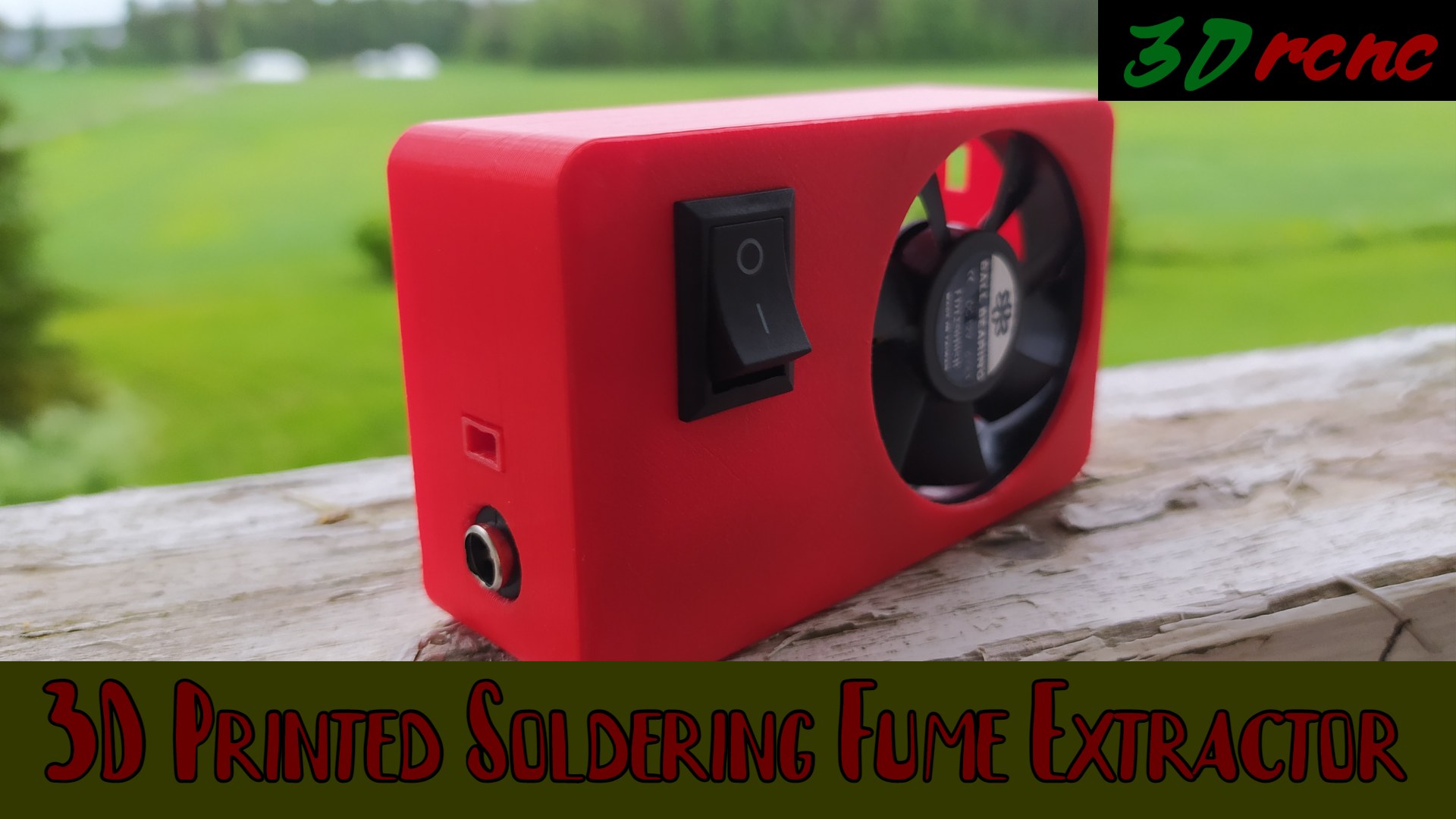

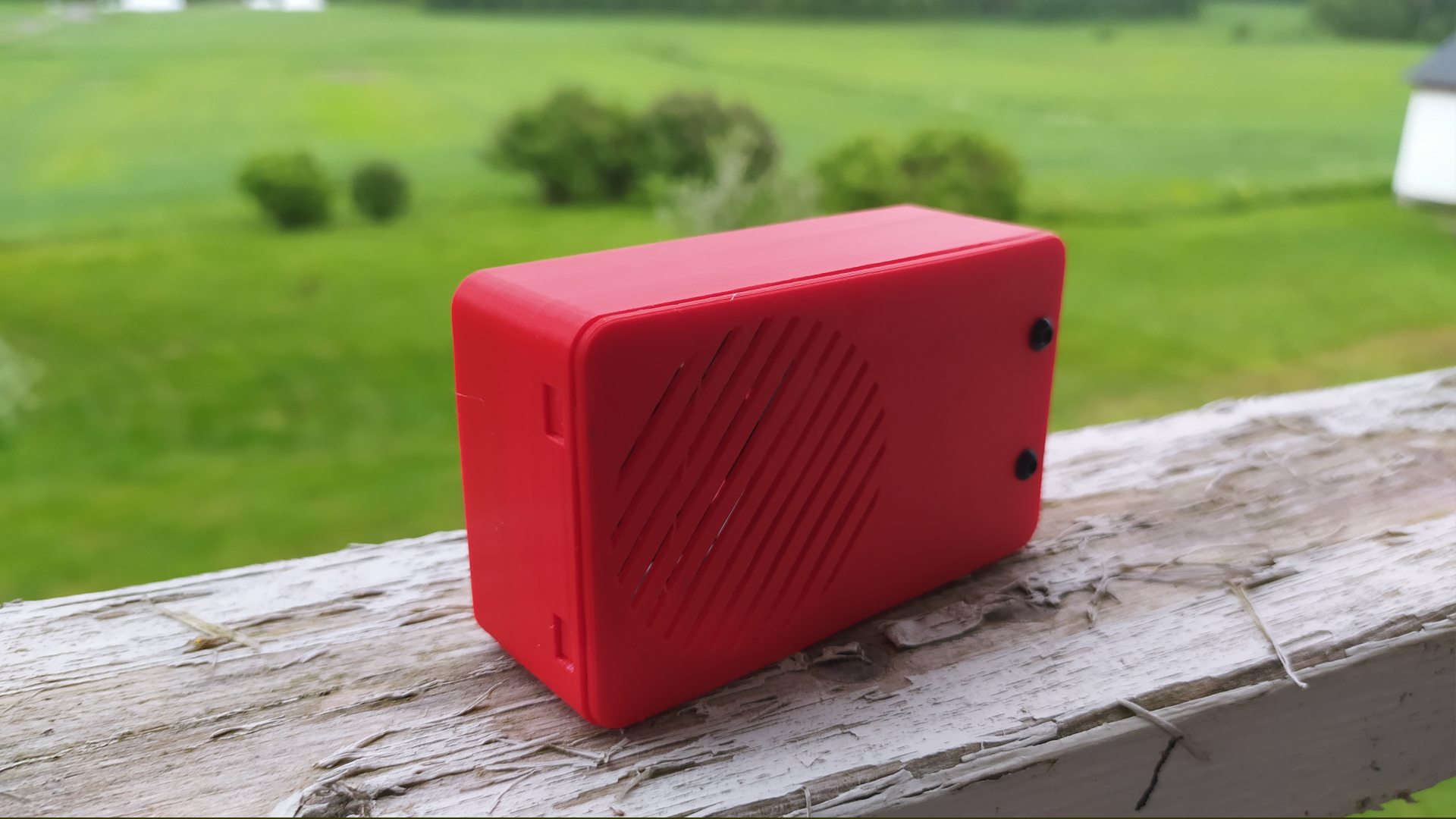

A really simple 3d printable soldering fume extractor that works suprisingly well.

Video: https://www.youtube.com/watch?v=QThX5WKXQHY

It can be powered using a 3s lipo battery using a jst bettery connector. Or using a 5.5mm dc jack. You could also only install one of the options. There is also room for an on/off switch. The fan this is designed around is a 5010 fan. I used a 12 volt fan but that can of course be changed.

Hardware links (had all parts but found some that would work)(Switch and one of the power inputs can be skipped):

Fan: https://www.amazon.com/WINSINN-Brushless-Cooling-Graphics-Motherboard/dp/B07GX8L4K8/ref=sr_1_1?dchild=1&keywords=5010+fan&qid=1627673640&sr=8-1

Switch: https://www.amazon.com/DaierTek-250VAC-Rocker-KCD1-101-Plastic/dp/B07S2QJKTX/ref=sr_1_18?dchild=1&keywords=rectangular+rocker+switch&qid=1627848563&sr=8-18

Can't find a link right now for the switch I used but still included the 19mm x12mm version

DC jack: https://www.amazon.com/DAYKIT-Female-2-1x5-5MM-Adapter-Connector/dp/B01J1WZENK/ref=sr_1_3?dchild=1&keywords=5.5mm+terminal&qid=1627674352&sr=8-3

JST connector: https://www.amazon.com/Pairs-Connector-Battery-Discharge-Female/dp/B01JUDP5NY/ref=sr_1_12?dchild=1&keywords=jst+connector&qid=1627673831&sr=8-12

Two m3x8mm button head bolts

Also the .step file is available for any modifications you might want to do.

Happy printing!

/3Drcnc
