Description
RDA5807 FM DSP radio with weekly schedule which is controlled by XIAO ESP32C3
This FM radio that can listen to radio programs based on a pre-set weekly schedule, has been produced.
The RDA5807FP is an FM DSP radio IC made by RDA Micro.
It is easy to use because it imprements in an SOP 16-pin package and uses fewer components.
It is controlled via an I2C interface of Seeed Studio XIAO ESP32C3,
and I use its WiFi functionality to achieve the target functionality.
I use NTP to set the Clock and the built-in web server function to set the weekly schedule.
This FM radio display unit has a choice of connecting via I2C or SPI.
I developed both programs.
The round color LCD(with CG9A01) is SPI-connected.
Code

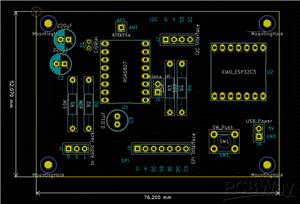

Schematic and Layout
Feb 02,2024
236 views
RDA5807 FM DSP radio with weekly schedule which is controlled by XIAO ESP32C3
This FM radio that can listen to radio programs based on a pre-set weekly schedule,
is controlled via an I2C interface of XIAO ESP32C3.
