Description
Pin Setter Break Out Boards and Arduino Shield
Pin Setter Break Out Boards and Arduino Shield for the Pin Setter by Danny Lunn.
This board has V-cuts to separate the Arduino Shield and the Breakout boards.
Feb 21,2026
16 views

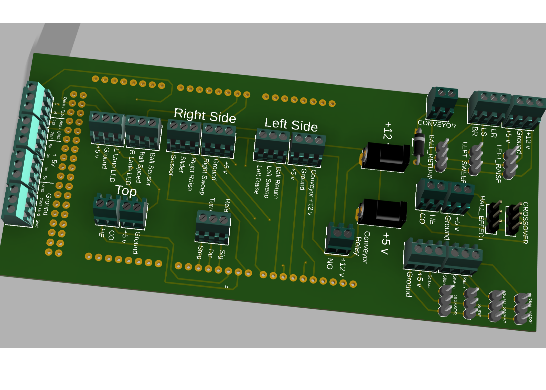

Pin Setter Break Out Boards and Arduino Shield
2 Layers PCB 136.6 x 61 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
Pin Setter Break Out Boards and Arduino Shield.
16
0
1
Published: Feb 21,2026
Standard PCB
PCBWay Donate 10% cost To Author
File Last Updated: 2026/02/21 (GMT+8)
