Components

	soip 28 sram	x 1
	10k resistor smd 0603	x 1
	1k resistor smd 0603	x 2
	100nf capacitor smd 0603	x 2
	nintendo 22 capacitor	x 1
	nintendo management chip	x 1
	cr2032 battery	x 1

Description

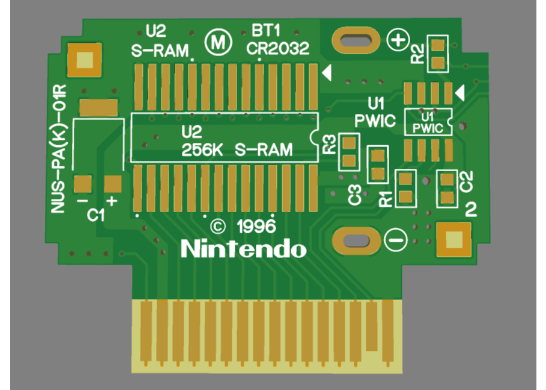

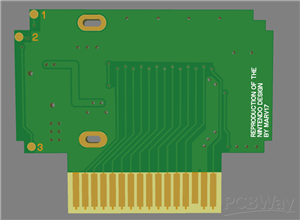

Nintendo N64 Controller pak reproduction PCB

an reproduction of the nintendo N64 design of controller pak , perfect for replace your defective nintendo board

you need re-use the parts of your defective pcb :

R1 1k ohms sùd 0603 resistor

R2 1k ohms smd 0603 resistor

R3 10k ohms smd 0603 resistor

C1 22 nintendo capacitor

C2 100nf smd 0603 capacitor

C3 100nf smd 0603 capacitor

U2 SOIP 28 SRAM

U1 NINTENDO Management chip

cr2032 battery

order the board in ENIG at minimum and with 1.2 mm thickness

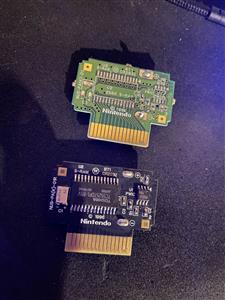

the pcb have been tested and it work ( 3th photo )

Dec 14,2025

18 views

Nintendo N64 Controller pak reproduction PCB

an reproduction of the nintendo N64 design of controller pak , perfect for replace your defective nintendo board

Published: Dec 14,2025
