Description
MiniPerformer+

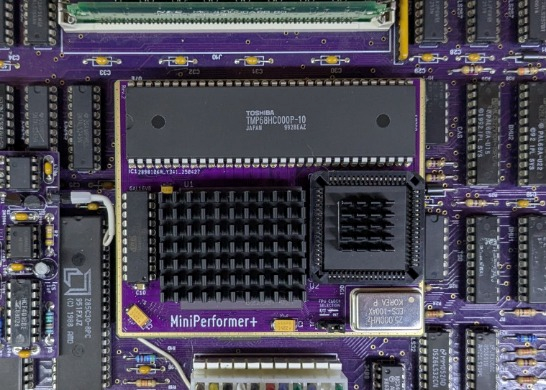

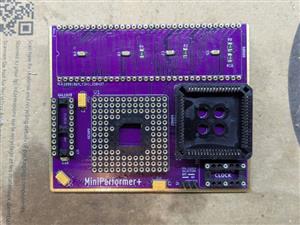

This board is a remix of the Micromac Performer reversed by Bolle, resized for installation on the Macintosh Plus clone I am using.
The original Performer had a clip mounted on the underside that allowed it to snap on the motherboard's 68000 without desoldering.
Those clips are now hard to come by, so this accelerator is meant to be installed in place of the 68000, which has to be desoldered and socketed.
This project is still a work-in-progress: please, check the Known Issues section on the github page!
Schematic and Layout
