I2S codec with power audio amplifier

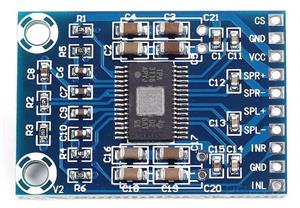

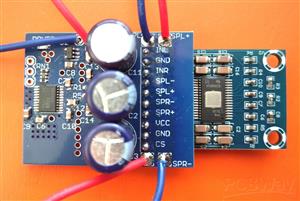

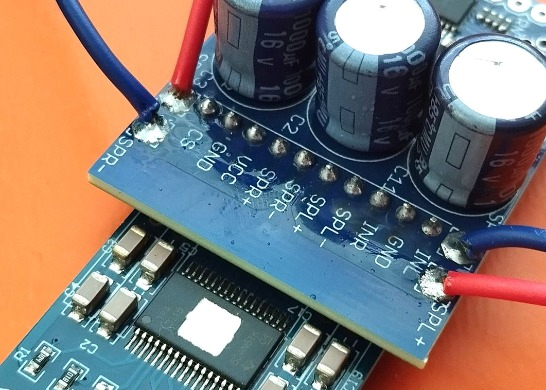

The board contains PCM5102A TI audio I2S codec, which output is amplified by the use of TPA3116D2 digital amplifier. The board can be supplied with voltage source in the range of 5V to 14V. The board have pins ordered in the way, that it passes to the pin order of widely sold TPA3116D2 board and both they are joined (soldered ) together by the use of 2.54mm pin header.

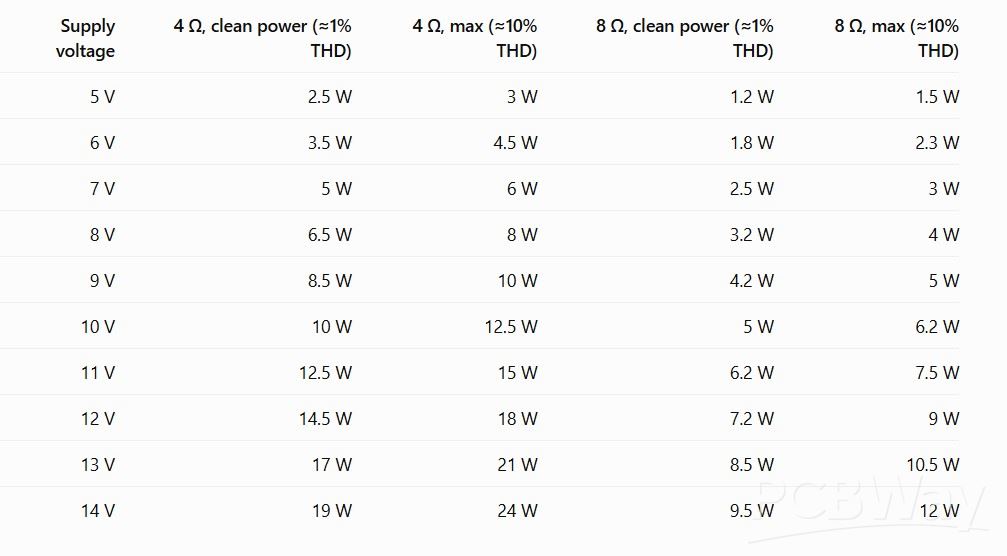

It can deliver the following power in a 4Ohm/8 Ohm speakers
