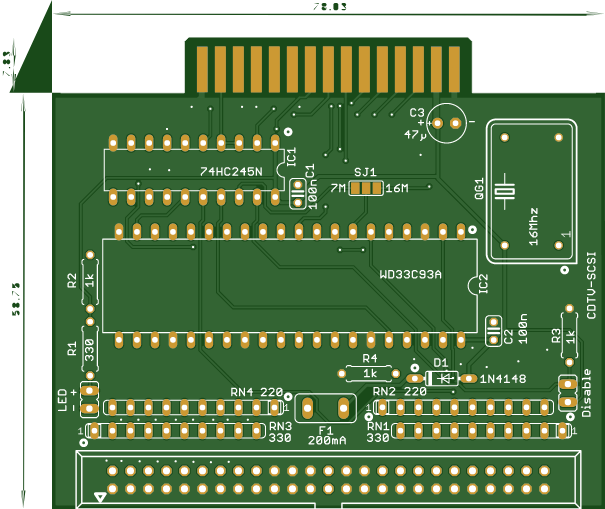

Commodore Amiga CDTV internal SCSI adapter board
based on the project of Matthias Heinrichs "Matze" from Germany
Part Value Device Package Description
C1 100n C-EU025-024X044 C025-024X044 CAPACITOR, European symbol
C2 100n C-EU025-024X044 C025-024X044 CAPACITOR, European symbol
C3 47μ CPOL-EUE2,5-6E E2,5-6E POLARIZED CAPACITOR, European symbol
CN1 CDTV-EXPANSION CDTV-EXPANSION CDTV-SLOT Expansion Port for CDTV and A570
D1 1N4148 1N4148DO35-7 DO35-7 DIODE
F1 200mA FUSETE5 TE5 Fuse
IC1 74HC245N 74HC245N DIL20 Octal BUS TRANSCEIVER, 3-state
IC2 WD33C93A WD33C93 DIP40-6 WD33C93 -SCSI-Chip
JP1 JP1E JP1 JUMPER
JP2 JP1E JP1 JUMPER
QG1 16Mhz XO-14 DIL14S CRYSTAL
R1 330 R-EU_0207/7 0207/7 RESISTOR, European symbol
R2 1k R-EU_0207/7 0207/7 RESISTOR, European symbol
R3 1k R-EU_0207/7 0207/7 RESISTOR, European symbol
R4 1k R-EU_0207/7 0207/7 RESISTOR, European symbol
RN1 330 G09R SIL10 SIL RESISTOR
RN2 220 G09R SIL10 SIL RESISTOR
RN3 330 G09R SIL10 SIL RESISTOR
RN4 220 G09R SIL10 SIL RESISTOR
SJ1 SJ2W SJ_2 SMD solder JUMPER
X1 057-050-1 057-050-1 057-050-1 CONNECTOR
Commodore Amiga CDTV internal SCSI adapter board
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
