This is a tested and working project

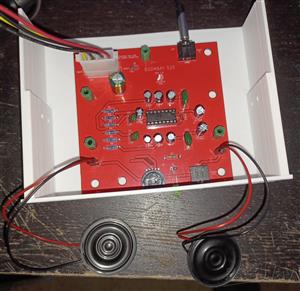

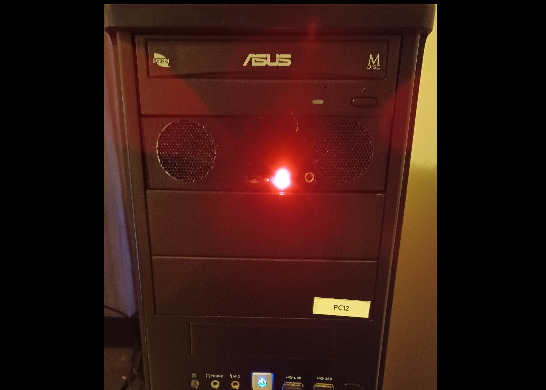

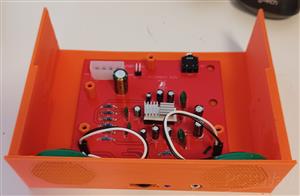

This project provides you with a set of small stereo speakers which can be directly mounted in a spare 5.25" drive bay of a computer. It is primarily intended for retro computer systems, but it could be used with modern systems if you were inclined to. Full instructions on assembly and case are available in the GitHub.

Feaures

Stereo speakers

Volume Control

Power LED

Front headphone jack

BOM (THT)

2 x 1nF Mylar/Film Capacitors

2 x 150nF Mylar/Film Capacitors

5 x 100uF Electrolytic Capacitors

2 x 2.2uF Electrolytic Capacitors

2 x 470uF Electrolytic Capacitors

1 x 1000uF Electrolytic Capacitor

1 x 100nf Ceramic Capacitor

2 x 10KΩ Axial Resistors

2 x 3.9KΩ Axial Resistors

2 x 620Ω Axial Resistors

1 x 680Ω Axial Resistor

1 x 3mm LED

2 x 5-pin 3.5mm Audio Jack Sockets TN/T/RN/R/S

1 x Male "Molex" connector (see BOM notes)

1 x 5-pin 10KΩ 16mm Thumbwheel Rotary Gear Potentiometer (see BOM notes)

1 x TEA2025B 16pin DIP (or compatible)

2 x 36mm 8Ω Speakers (range 0.25 to 1 watt)

3 x 2pin Headers (2.54mm Pitch) (see BOM notes)

1 x Audio Cable with 3.5mm jacks at each end

GitHub

https://github.com/oddsocks1024/BoomBay-525

PCB Case

https://www.pcbway.com/project/shareproject/BoomBay_525_Case_Speakers_in_your_5_25_Drive_Bay_3b4b11f0.html
