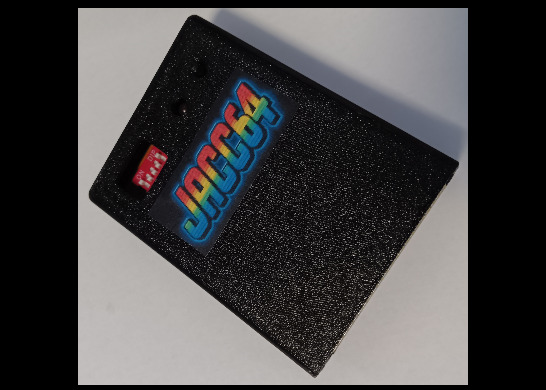

JACC64 512K - C64 Cartridge Case
A cartridge case for the JACC64 512K - C64 Cartridge which is also compatible with normal C64 cartridges. Case is designed to use 2 x 3.5mm self tapping screws for a secure fit
JACC64 512K PCB
https://www.pcbway.com/project/shareproject/JACC64_512K_32_Game_C64_Cartridge_42f2de5b.html
CAD-Custom parts and enclosures

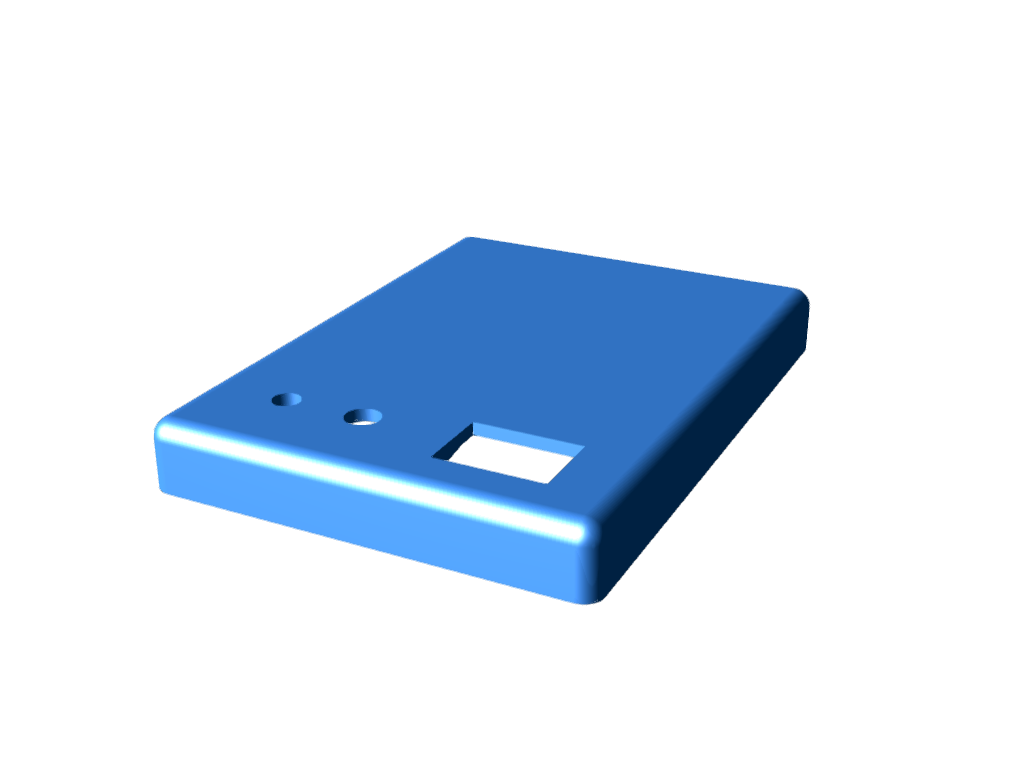

Top Shell
JACC64-512K - Top.stl

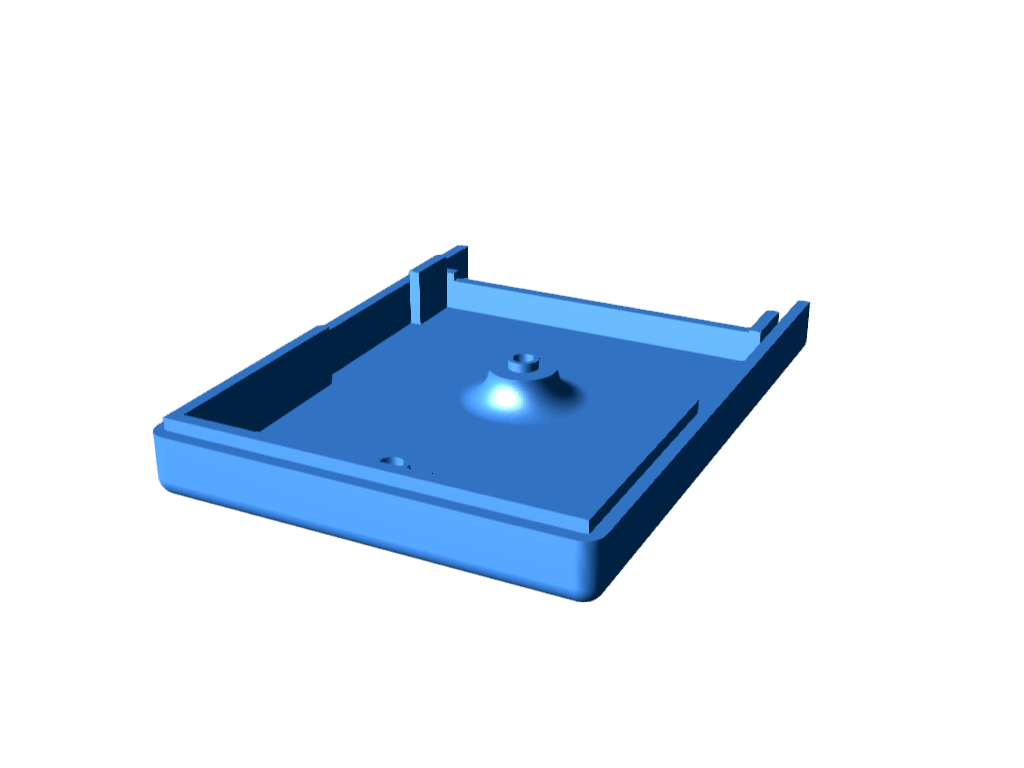

Bottom Shell
JACC64-512K - Bottom.stl

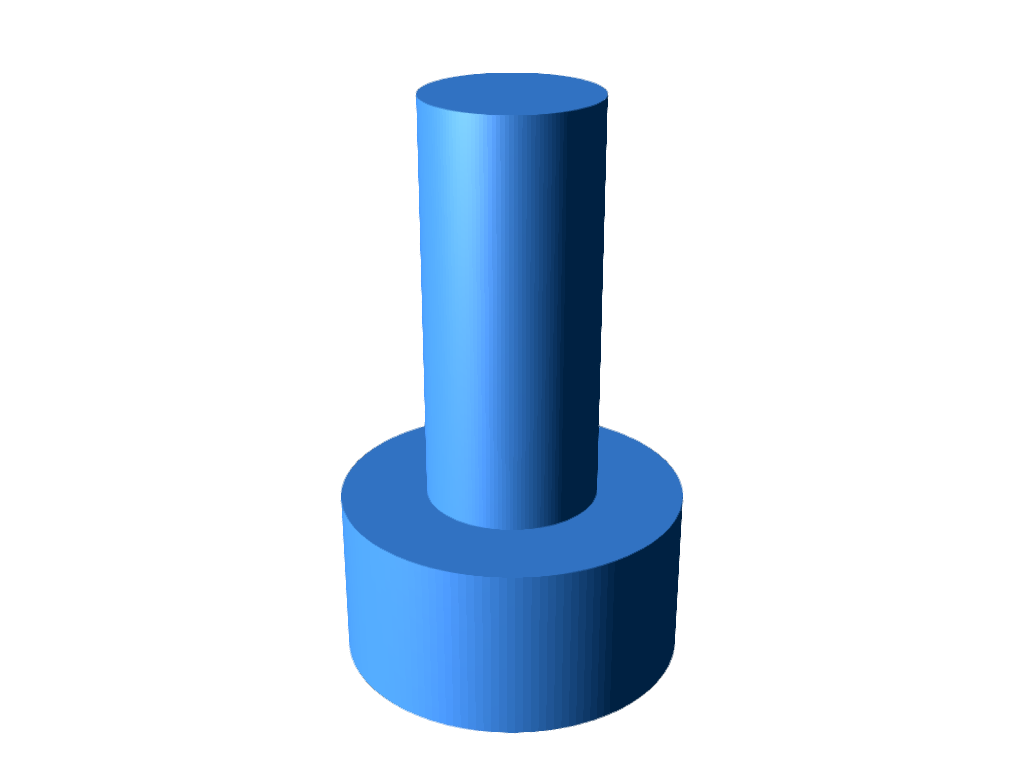

Reset Pin
Reset Pin.stl
Jul 12,2025
307 views
JACC64 512K - C64 Cartridge Case
A cartridge case for the JACC64 512K - C64 Cartridge which is also compatible with normal C64 cartridges.
307
1
0
Published: Jul 12,2025
PCBWay Donate 10% cost To Author
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
