Arduino USB v1.0
Original Arduino USB v1.0 design files, from old Arduino's official archives. Original Gerber files generated with Eagle 9.6.2
Original BoM:
Item,Quantity,Designator,Value,Footprint,Description
1,1,IC1,ATMEGA8,DIP-28,Microcontroller ATmega8
2,1,IC2,7805,TO-220,Voltage Regulator 5V
3,1,IC3,FT232BM,QFP-32,USB to UART IC
4,1,D1,1N4004,DO-41,Diode 1N4004
5,1,PWR_LED,LED,LED-0805,Power Indicator LED
6,5,C1 C4 C5 C8 C9,100nF,C0805,Ceramic Capacitor 100nF
7,2,C2 C3,22pF,C0805,Ceramic Capacitor 22pF
8,2,C6 C7,100uF,Electrolytic-Radial,Electrolytic Capacitor 100uF
9,2,R3 R4,27,R0805,Resistor 27 Ohm
10,1,R8,220,R0805,Resistor 220 Ohm
11,1,R6,470,R0805,Resistor 470 Ohm
12,1,R7,1k,R0805,Resistor 1k Ohm
13,1,R5,1.5k,R0805,Resistor 1.5k Ohm
14,2,R1 R2,10k,R0805,Resistor 10k Ohm
15,1,Q1,Crystal,HC-49S,Quartz Crystal
16,1,OSC,Resonator,3-PIN,3-Pin Resonator / Crystal for FT232BM
17,1,X1,USB,USB-B,USB Type-B Connector
18,1,X2,PWR_JACK,BARREL_JACK,DC Power Connector
19,1,POWER,Header 4P,HDR-1X4,Pin Header 1x4 2.54mm
20,1,ICSP,Header 2x3,HDR-2X3,Pin Header 2x3 2.54mm
21,1,IC3P,Header 3P,HDR-1X3,Pin Header 1x3 2.54mm
22,1,SV1,Header 3P,HDR-1X3,Power Select Header 1x3 2.54mm
23,1,S1,SW-PUSH,PUSHBUTTON,Tactile Switch
24,3,J1 J2 J3,Header 8P,HDR-1X8,Pin Header 1x8 2.54mm

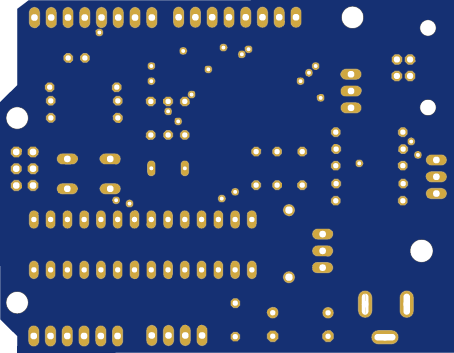

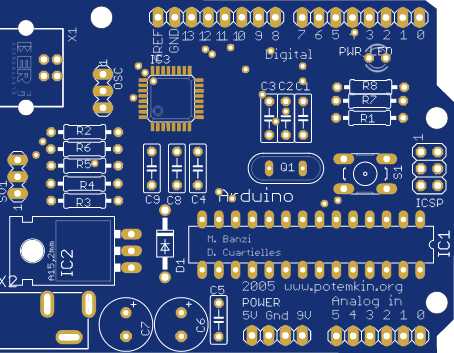

Arduino USB v1.0
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
