Carlos Arcos

SPAIN • + Follow Edit Project

0

Description

Arduino serial v1.0

Original Arduino serial v1.0 design files, from old Arduino's official archives. Original Gerber files generated with Eagle 9.6.2

Mar 02,2026

42 views

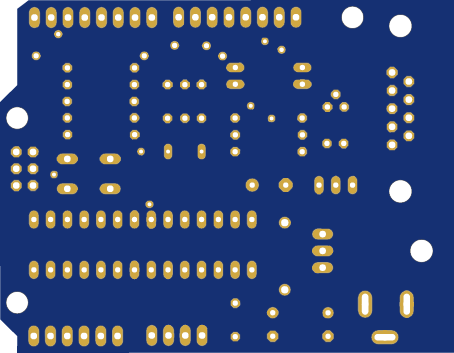

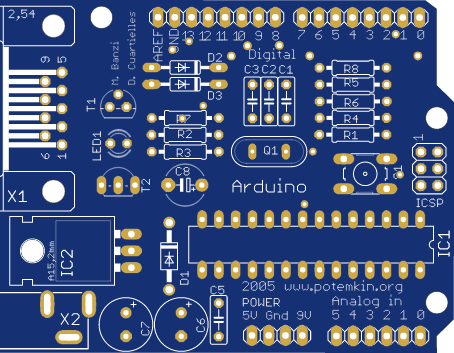

Arduino serial v1.0

2 Layers PCB 53.4 x 68.8 mm FR-4, 1.6 mm, 1, HASL with lead, Blue Solder Mask, White silkscreen

42

0

1

Published: Mar 02,2026

Standard PCB

Purchase

Donation Received ($)

PCBWay Donate 10% cost To Author

Only PCB

*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.

Copy this HTML into your page to embed a link to order this shared project

Copy

Copyright Info

Attribution-ShareAlike (CC BY-SA) License

Under the Attribution-ShareAlike (CC BY-SA) License.
