This board converts CPC464/6128 video output to Composite and S-VIDEO signals.so you can use any TV / LCD TV instead of the original monitor.

This is a proven and tested project. Schematic is circulating around the internet for a long time. I couldn't track down the original designer.

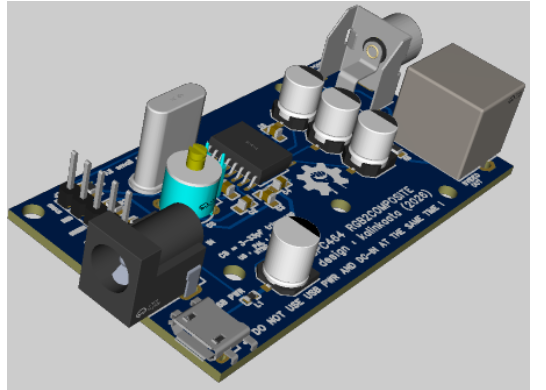

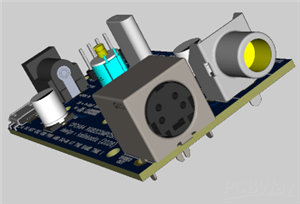

PCB is created by me, from scratch.

The microUSB port is only for powering the board...you can use any old phone charger.

Alternative power : barrel jack connector ( use regulated 5VDC here, center positive )

DO NOT connect both power connectors at the same time

For connecting to the CPCs Video port, you will need a male 6pin DIN connector, and connect signals to this PCB.

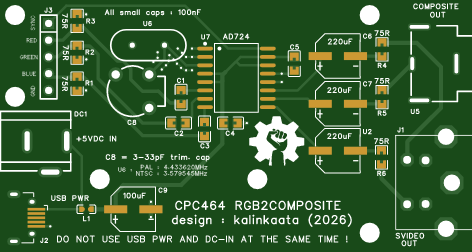

PCB signal pinout is marked on the board.

If you need only one of the video outputs, you don't have to solder the other one.

If the picture quality seems wrong :

• adjust the variable capacitor
• check if your CPC really receives 5V (5.1V ),and not something lower. CPC will work fine with lower than 5V, but not the converter!!

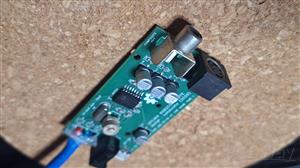

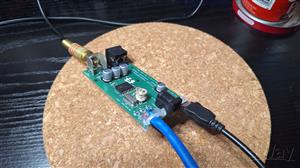

• puctures of the real board coming later
