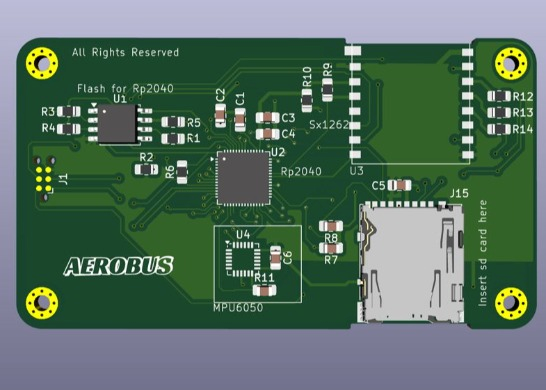

Detailed Description of the RP2040 + SD Card + Flash + MPU6050 Module

This custom module integrates the Raspberry Pi RP2040 microcontroller with onboard flash memory, an SD card slot, and an MPU6050 6-axis motion sensor, forming a compact and versatile platform for data acquisition, motion analysis, and embedded control systems. Designed for both prototyping and final-product integration, the module minimizes wiring complexity by combining processing, storage, and sensing on a single board.

Core Processing – RP2040 MCU

At the heart of the board is the RP2040, a dual-core Arm Cortex-M0+ microcontroller running up to 133 MHz. It provides:

High-performance dual-core architecture for running concurrent tasks such as sensor sampling and data logging.

Rich peripherals including SPI, I²C, UART, PWM, PIO, and ADC.

Programmable I/O (PIO) blocks for custom protocols or high-speed timing tasks.

Low-power modes, making the board suitable for battery-powered applications.

Storage – Flash + SD Card

The board includes two storage options:

Onboard Flash

Used for firmware, configuration files, or small-scale data storage.

MicroSD Card Slot

Provides large-capacity, removable storage ideal for:

High-frequency sensor data logging

Long-duration recordings

Storing motion datasets or application logs

With SPI-based SD card communication, the module supports FAT/FAT32 filesystems for easy desktop access.

Motion Sensing – MPU6050 IMU

The integrated MPU6050 provides:

3-axis accelerometer

3-axis gyroscope

DMP (Digital Motion Processor) for on-board sensor fusion

I²C interface for simple and efficient communication with the RP2040

This gives the module real-time access to orientation, tilt, motion, vibration, and angular velocity data—making it useful for:

Robotics balance systems

Wearable motion trackers

Inertial navigation

Gesture-based interfaces

Vibration monitoring

Design Advantages

All-in-one functionality: Reduces the need for multiple breakout boards.

Compact footprint: Easier integration into small enclosures or portable devices.

Plug-and-play development: Works with the Arduino IDE, MicroPython, CircuitPython, and the Raspberry Pi Pico SDK.

Reliable data handling: Onboard flash for firmware + SD card for heavy logging ensures clean separation of program memory and data storage.

Flexible I/O: Remaining GPIO pins allow connection to displays, motors, wireless modules, or custom peripherals.

Cost-efficient: Combines commonly used components into a single affordable board for hobbyists and product designers.

Target Use Cases

Portable data loggers

Robotics control systems

Accelerometer/gyroscope-based input devices

Environmental or industrial monitoring

Wearables and motion analytics

Early-stage prototyping for IoT and embedded products
