Description
ATARI 800XL 27C64 / 27C128 ROM adapter for the original 2364
ATARI 800XL 27c64 / 27c128 ROM adapter
BASIC ROM
It adapts 27c64 / 27c128 to C060302A (U4).
27c128 requires a 4.7K pull-up resistor and a jumper (normally closed).
27c64 does not require the resistor and jumper.
OS ROM
CO61598B (U5) can be replaced with 27c128 w/o the adapter.
Downloads:
Atari 800XL OS ROM (U5)
https://www.nightfallcrew.com/wp-content/plugins/download-monitor/download.php?id=1739
Atari 800XL BASIC ROM (U4)
https://www.nightfallcrew.com/wp-content/plugins/download-monitor/download.php?id=1740
thanks to nightfallcrew
Jul 11,2022
2,380 views
ATARI 800XL 27C64 / 27C128 ROM adapter for the original 2364
To replace ROM BASIC C060302A (U4) with an EPROM 27C64 / 128
2380
9
0
Published: Jul 11,2022
Standard PCB
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-NonCommercial-ShareAlike (CC BY-NC-SA)
License.
Raspberry Pi 5 7 Inch Touch Screen IPS 1024x600 HD LCD HDMI-compatible Display for RPI 4B 3B+ OPI 5 AIDA64 PC Secondary Screen（Without Speaker）
BUY NOW
- Comments(0)
- Likes(9)
Upload photo
You can only upload 5 files in total. Each file cannot exceed 2MB. Supports JPG, JPEG, GIF, PNG, BMP
0 / 10000
More by Edoardo kinmami
-

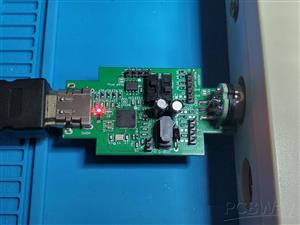

Commodore 64 1541-II 1581 Floppy Disk Drive C64 Power Supply Unit USB-C 5V 12V DIN connector 5.25
