Description
2.4GHz receiver circuit using ESP32, nRF24L01 with IC motor controller L298N

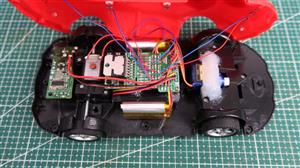

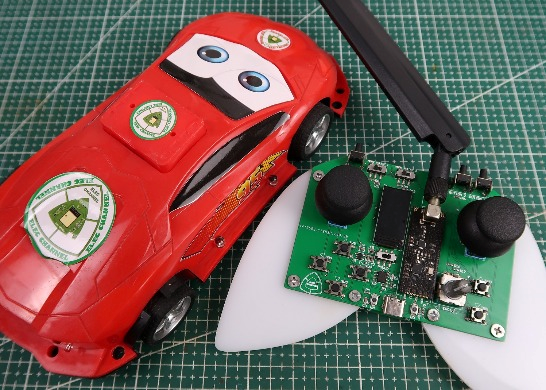

Hello all, this PCB is a receiver for a RC car toy, it uses ESP32 as the main controller, nRF24L01 to conmunicate with transmitter, and the IC motor controller L298N is interated to this board as a subboard, so you can control up to 2 motors DC, or you can duplicate this subboard to expand the number of motors that you want to control.
Code
Source code
https://github.com/thanh-duyen/TXRX-2.4GHz/tree/main/Code/RX_V3

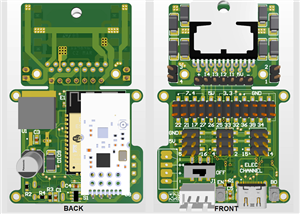

Schematic and Layout
Schematic
https://github.com/thanh-duyen/TXRX-2.4GHz/blob/main/RX_V3_Schematic.pdf
