The Goal here is to Advance the Drop Bear to UNO Q and Duel Teensy

to replace Stanley A Meyer GMS Gas Management Unit and ECU EMS SYSTEM

Daniel's kind-hearted approach and dedication to a cleaner energy future deserve recognition and support.

By supporting his work, you join in the journey toward a sustainable future.

Godspeed, Daniel Donatelli!

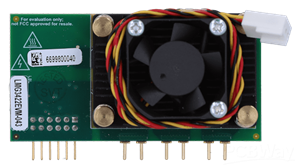

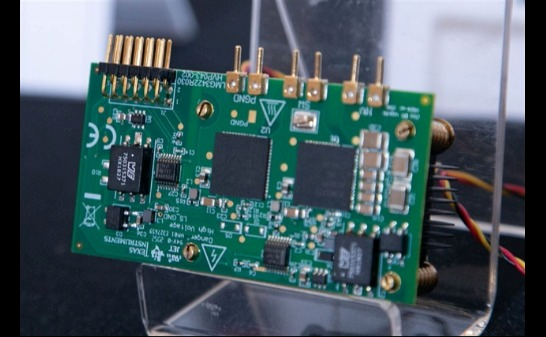

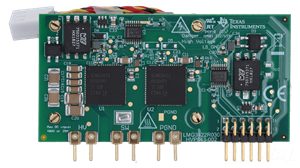

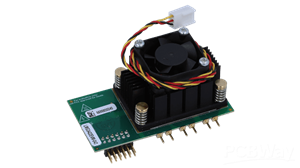

Bill of Materials for LMG3422EVM-043

Reference Designator Description Part Number Quantity Manufacturer Notes

U 6100 V, 30 A GaN Half-BridgeLMG3422R0301Texas Instruments Main IC, central to half-bridge

C1, C2 100 µF Electrolytic CapacitorEEU-FR0J1012PanasonicInput decoupling, 25 V rating

C3, C4 0.1 µF Ceramic CapacitorGRM155R71C104KA012MurataHigh-frequency bypass, 50 V

C5, C6 10 nF Ceramic CapacitorCL05C103JB5NNNC2Samsung Electro-Mechanics Bootstrap support, 50 V

C7 0.1 µF Ceramic CapacitorGRM155R71C104KA011MurataBootstrap capacitor

D1 600 V Schottky DiodeSTPS60SM200C1STMicroelectronicsBootstrap diode

R1, R5 10 kΩ Resistor, 1/4 WRC1206FR-0710KL2YageoPull-up/pull-down resistors

R2, R3, R10, R12, R170 Ω Jumper Resistor, 1/4 WRC1206JR-070RL5YageoOptional jumpers for configuration

R41 kΩ Resistor, 1/4 WRC1206FR-071KL1YageoCurrent sensing or bias

TH1, TH2, TH3,

TH4 Test Point, Through-Hole50124Keystone Electronics For probing voltages/currents

J1 3-Pin Header, 2.54 mm22-23-20311MolexPower input connector (VCC, VS, GND)

J2 2-Pin Header, 2.54 mm22-23-20211MolexSwitching node (SW) connector

J3 4-Pin Header, 2.54 mm22-23-20411MolexControl input (INH, INL, SD, VDD)
