Components

labtop with powerfull procesor or gpu

asus

x 1

Tools, APP Software Used etc.

Python 3.9

Python Community

Description

predective maintenance using machine learning

maintenace play major role in factory , it can make us gain money or lose it , so this why we need to minimize the stop time of the machine , and here where the predictive maitenace enter . we use machine learning algorithm with dataset to know when the equipment gona fail ,like pump motor and so on , my project here use machine learning algorithm to do this work .

Code

Python

from PyQt5.QtWidgets import *
from PyQt5 import uic
import sys
from PyQt5.QtWidgets import QFileDialog, QApplication
import pandas as ps
from sklearn.model_selection import train_test_split
from sklearn.neighbors import KNeighborsClassifier
from sklearn.metrics import accuracy_score
import numpy as np

class Mygui(QMainWindow):

    def __init__(self):
        super(Mygui, self).__init__()
        try:
            #uic.loadUi("D:/qt designer/PrevMaintenance.ui", self)
            uic.loadUi("PrevMaintenance.ui", self)
            self.show()
            self.file_path = None  # Initialize to None to avoid errors
            self.browsfile.clicked.connect(self.browsefile)
            self.newdata.clicked.connect(self.gettext)
            self.analyse.clicked.connect(self.get_text)

        except Exception as e:
            print(f"An error occurred during initialization: {e}")

    def browsefile(self):
        try:
            options = QFileDialog.Options()
            options |= QFileDialog.DontUseNativeDialog

            self.file_path, _ = QFileDialog.getOpenFileName(self, "Select a file", "", "All Files (*);;Text Files (*.txt)", options=options)

            print(f"Selected File: {self.file_path}")  # Debugging: Check the file path
            self.browsresult.setProperty("text", self.file_path)
            if self.file_path:  # Check if a file was selected
              pass#  self.process_table(file_path)
            print("eft")
        except Exception as e:
            print(f"An error occurred while browsing the file: {e}")

    def process_table(self, file_path):
        try:

            det =ps.read_csv(file_path,delimiter = ",")

           # x= det.drop(columns =6,axis=1)
            #x=det.drop(columns=[4],axis=1)
            global knn
            x = det.iloc[:, :colonend]
            print ("this is x",x)
            y = det.iloc[:, [labelcolon]]
            y = y.to_numpy().flatten()
            print(y.shape)
            x_train ,x_test , y_train, y_test = train_test_split(x,y,test_size=percent,random_state=1)
            knn = KNeighborsClassifier(n_neighbors=kk)
            knn.fit(x_train, y_train)
            y_pred = knn.predict(x_test)

            # Evaluate the model
            accuracy = accuracy_score(y_test, y_pred)
            print(f"Accuracy: {accuracy * 100:.2f}%")
            self.accuracy1.setProperty("text", accuracy * 100)




        except Exception as e:
            print(f"An error occurred while processing the file: {e}")

    def gettext(self):
        try:
            global items
            text8 = self.newdata_2.text()
            items = np.array([item.strip() for item in text8.split(",") if item.strip()],dtype=float).reshape(1, -1)

            print("text of arry",items)
            result = knn.predict(items)
            #self.plainTextEdit_4.setProperty("text", result)
            self.plainTextEdit_4.setPlainText(str(result))

        except Exception as e:
            print(f"An error occurred while processing the file: {e}")



    def get_text(self):
        try:
            global colonend
            global labelcolon
            global percent
            global kk

            text1 = self.label1.text()  # Get text from QLineEdit
            labelcolon=int(text1)
            text2 = self.endcolumns.text()  # Get text from QLineEdit
            colonend=int(text2)
            text3 = self.percentage.text()  # Get text from QLineEdit
            percent = float(text3)
            text4 = self.ktuned.text()  # Get text from QLineEdit
            kk = int(text4)
            print(f"Entered text: {labelcolon}")  # Print to console or use in logic
            self.process_table(self.file_path)
        except Exception as e:
            print(f"An error occurred while processing the file: {e}")
def main():
    app = QApplication([])
    window = Mygui()
    sys.exit(app.exec_())

if __name__ == "__main__":
    main()

Schematic and Layout

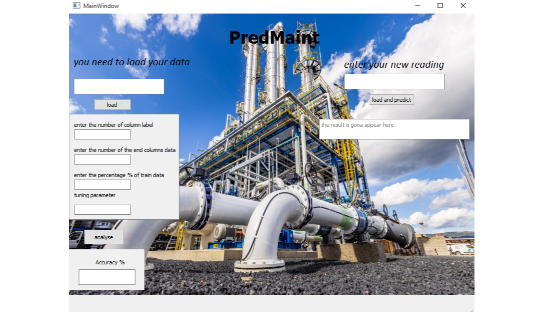

video of it working

pred.wmv
