Components
|
|
ATtiny26Lmicrochip
|
x 1 | |
|
|
LM2596S-12 |
x 1 | |
|
|
TPS5430DDARTI(德州仪器)
|
x 1 | |
|
|
MOC3041M |
x 1 | |
|
|
nxp bta41-600vnxp
|
x 1 | |
|
|
AC03-CS vishay 100ohmvishay
|
x 1 | |
|
|
ak10-530cvishay
|
x 1 |
Tools, APP Software Used etc.
|
KiCad 9.0 |
|
|
arduino IDEArduino
|
Description
motor starting using star delta device
my project is about making device that can be star 3 phase ac induction motor with high power using star delta method , the advance of my device is that can be compact ,low coast , and fast to wire it in the panel , with also thermal protection that the traditional using of contactor
Code
the code
Arduino
#define POT_PIN A1
#define SENSE_PIN A7
#define START_PIN 0
#define MAIN_PIN A2
#define STAR_PIN A6
#define DELTA_PIN A4
const float ADC_REF = 5.0;
const float OVER_VOLTAGE = 2.0;
bool motorRunning = false;
bool starActive = false;
unsigned long starStartTime = 0;
unsigned long starDuration = 0;
void setup() {
pinMode(START_PIN, INPUT);
pinMode(MAIN_PIN, OUTPUT);
pinMode(STAR_PIN, OUTPUT);
pinMode(DELTA_PIN, OUTPUT);
stopAll();
}
void loop() {
float senseVoltage = analogRead(SENSE_PIN) * ADC_REF / 1023.0;
if (senseVoltage > OVER_VOLTAGE) {
stopAll();
motorRunning = false;
return;
}
bool startSignal = digitalRead(START_PIN);
if (startSignal && !motorRunning) {
motorRunning = true;
starActive = true;
int potValue = analogRead(POT_PIN);
starDuration = map(potValue, 0, 1023, 0, 120000UL);
starStartTime = millis();
digitalWrite(MAIN_PIN, HIGH);
digitalWrite(STAR_PIN, HIGH);
digitalWrite(DELTA_PIN, LOW);
}
if (motorRunning && starActive) {
if (millis() - starStartTime >= starDuration) {
// Turn off star, turn on delta
digitalWrite(STAR_PIN, LOW);
digitalWrite(DELTA_PIN, HIGH);
starActive = false;
}
}
if (!startSignal && motorRunning) {
stopAll();
motorRunning = false;
}
}
void stopAll() {
digitalWrite(MAIN_PIN, LOW);
digitalWrite(STAR_PIN, LOW);
digitalWrite(DELTA_PIN, LOW);
}

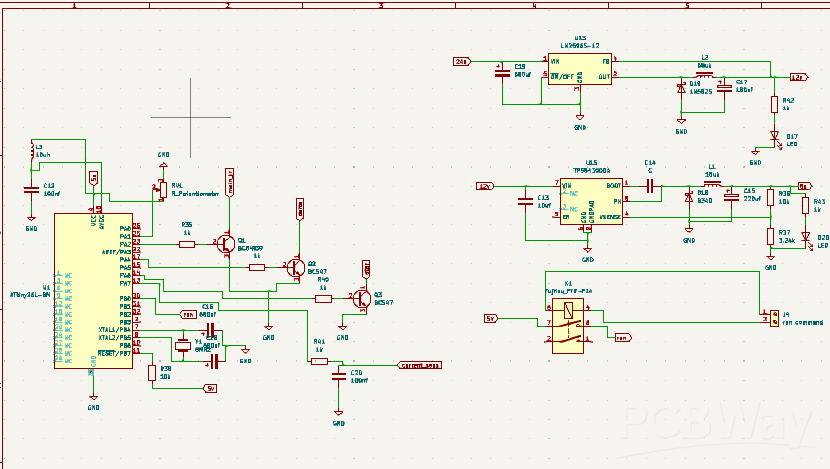

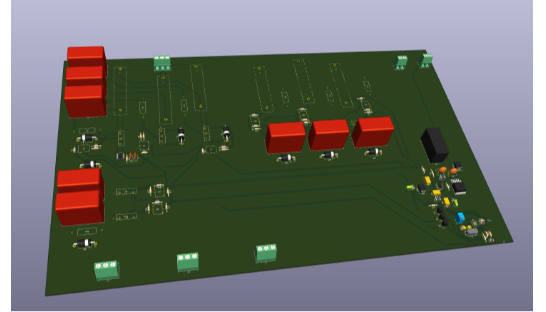

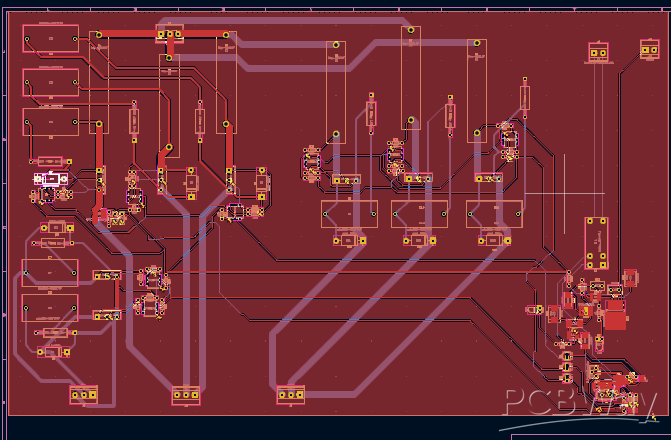

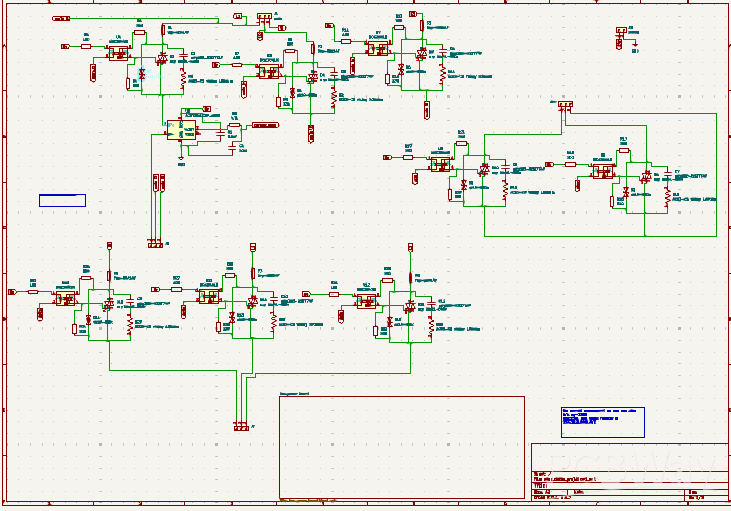

Schematic and Layout
schematics
star_delta_proj.kicad_sch
star_delta_proj.kicad_pcb
Jan 31,2026
14 views
motor starting using star delta device
in industrial electrical panel doing star delta motor star can be coastlyand time consuming with this device can be fast and low prise
