Description

water conductivity traitement controller

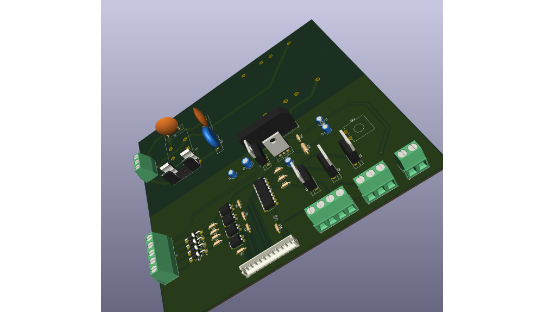

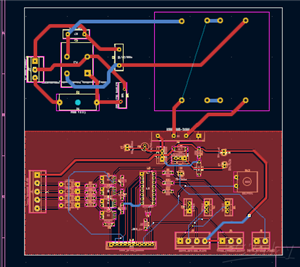

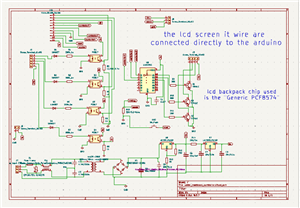

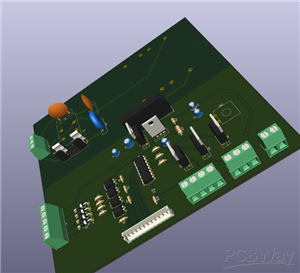

my project is about turning arduino uno board to industrial water traitement controller that is used for monitoring the conductivity of water to inspect the quality of the water , and being able to control the small water traitement station that filter water using membrane , my pcb card will let the arduino uno board interact with 24v system and read from sensor analog and digital type that work with 0 to 10 v for the analog and 24v for the digital sensor and also control diffrent pump and electrovalve.

Code

the code

code1.ino

Download Gerbers Download BOM(Bill of materials)

May 12,2026

13 views

water conductivity traitement controller

for chemical and food industry the quality of water is important our design pcb make simple arduino uno do the job smoothly,
