pogo pin clamp for esp32 programmer

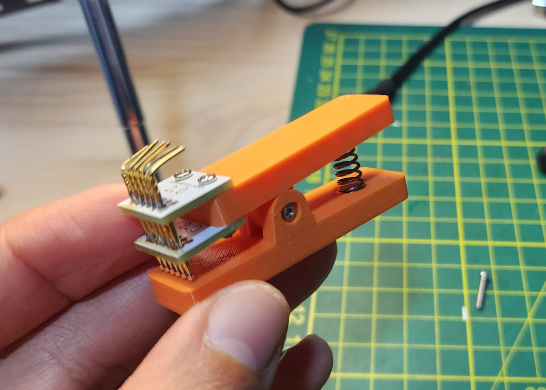

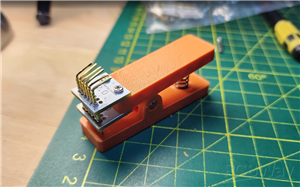

This hook is an accessory for the esp32 programmer, which is published here. You only need a custom-made PCB according to your needs. I made it for 6 pins with 2 mm separation.
https://www.pcbway.com/project/shareproject/ESP32_Programmer_cf419bfe.html
