Outdoor enclosure
If you've already seen the Addon Battery YD-ESP32-S3 board I made to give autonomy to the YD ESP32 S3 development boards, you might be wondering:
Housing

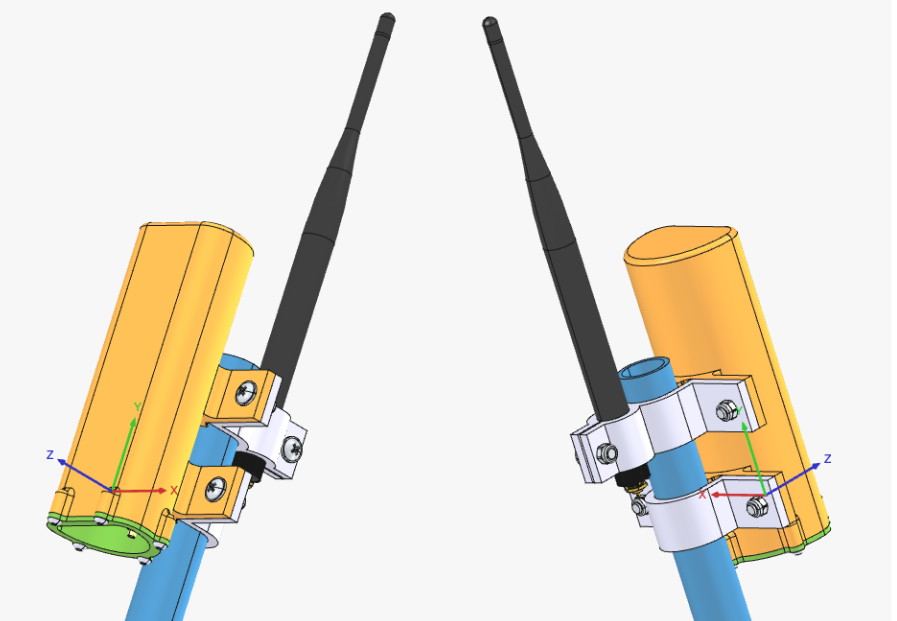

I designed the housing in FreeCAD, and it has a cylindrical shape with a lid at the bottom to prevent splashes. It also has clamps that can be adjusted to different sizes; in my case, a 1/2" PVC pipe. Additionally, one of the supports has an adapter to connect the 915 MHz antenna.

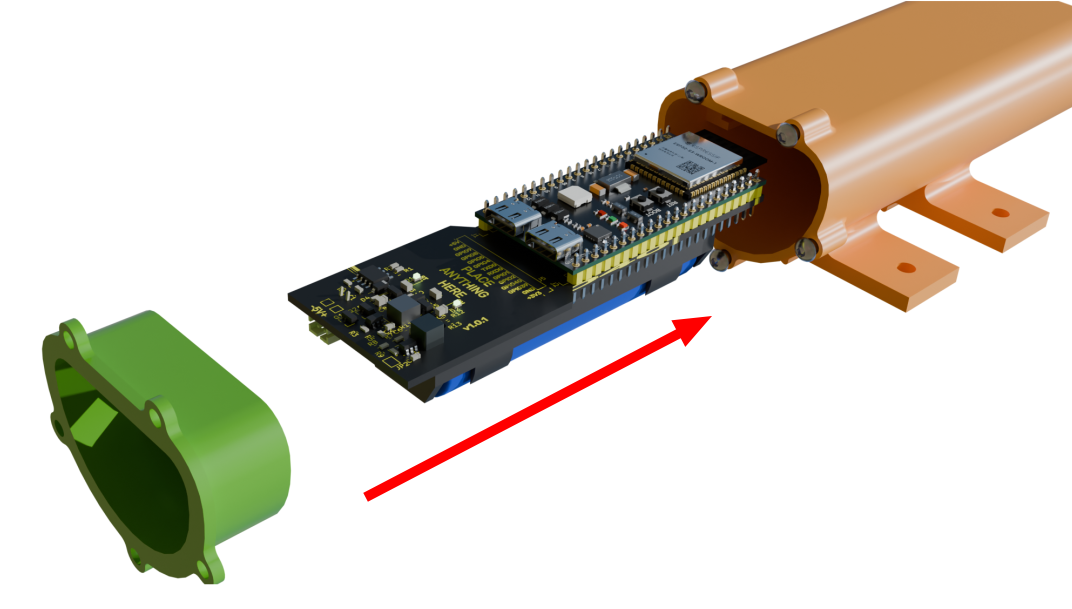

The PCB is inserted as a sort of rail into the casing, as seen in the following image.
Outdoor enclosure
