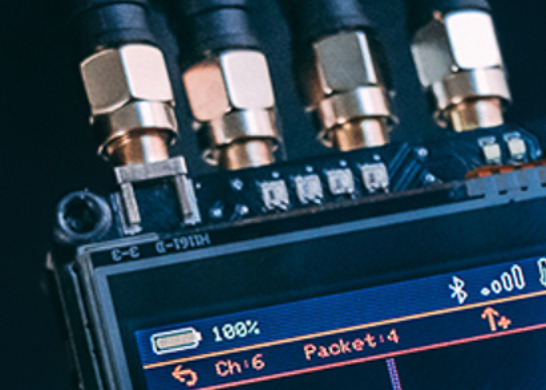

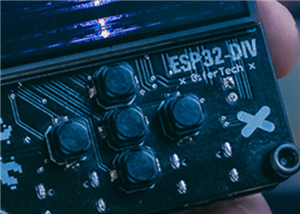

esp32div v2 main
this is not mine, i have just uploaded it here to pcbway.
This project has easily become one of the most talked-about things I’ve built. I get messages about DIV almost every day — questions, ideas, feature requests — and it’s clear this device has grown into something much bigger than a single experiment.
After version one, I released multiple firmware updates, but I never really had the chance to sit down and properly show everything that changed. You already knew about the hardware redesign, so this post focuses on two things:
1. Finalizing the hardware evolution
2. Walking through what the firmware has become
ESP32DIV was never meant to be just one tool. It was designed as a platform.
esp32div v2 main
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
