White LED PCB for Conversion of IR Trail Camera to White Flash

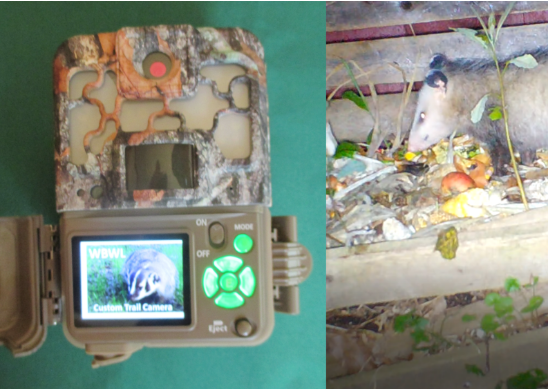

There are many cases where camera trappers would like a color photo of primarily nocturnal animals. Unfortunately, there are few choices for mid-range commercial white flash trail cameras on the market. A full blown DSLR homebrew is one possibility, but has its own drawbacks. This PCB is part of a project to convert one of our favorite mid-range commercial cameras -- a Browning Recon Force Advantage (BTC-7A) -- from an IR Flash to White Flash. For more information, and detailed assembly guide, see IR to White Flash Trail Camera Conversion

Download Gerbers

Oct 02,2021

1,912 views

White LED PCB for Conversion of IR Trail Camera to White Flash

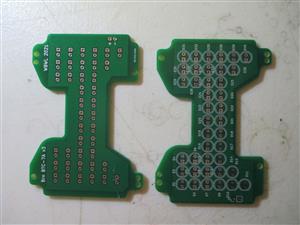

2 Layers PCB 56 x 79 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen

Convert IR Trail Camera to white flash. https://winterberrywildlife.ouroneacrefarm.com/2021/09/15/ir-to-white-flash-trail-camera-conversion

1912

8.75 (1)

Published: Oct 02,2021

Standard PCB

Download Gerber file 11

PCBWay Donate 10% cost To Author

Only PCB
