PCB_Mega_2560_2023-11-17

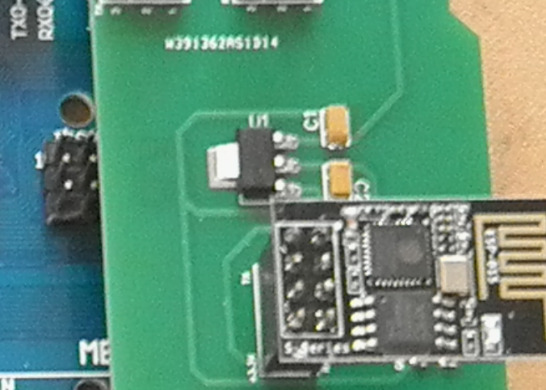

Add on shield for a mega 2560 that mounts at the rear of a mega. It uses an esp-01s module and allows selection of the comm port. Built in regulator takes the 5vdc from the mega and drops it to 3v3 for the esp module.
Apr 28,2024
336 views
PCB_Mega_2560_2023-11-17
2 Layers PCB 53.3 x 35.5 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
Wifi shield mounts to rear of mega and uses esp-01s
336
0
0
Published: Apr 28,2024
Standard PCB
Download Gerber file 2
BOM(Bill of materials)
Centroid file
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
