Add On Wifi board for Mega 2560
Easily add a wifi component to a mega 2560. Uses an ESP8266 module. Board powers the module and allows user to select either com1, com2 or com3 to connect to esp8266. Most UNO shields can still be used.
Feb 15,2026
17 views
Add On Wifi board for Mega 2560

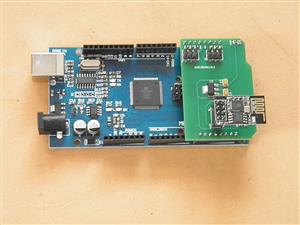

Plug the board onto the rear of a Mega 2560 to add Wifi. Power is drawn from the mega so no wiring needed. Jumpers Com Port Selection.
