USB Powered Stereo Audio Amplifier for LTSpice training

Description:

This USB-powered audio amplifier is used as a practical example for a step-by-step LTSPICE tutorial.

The tutorial covers everything from drawing the schematic to importing third-party SPICE models, analyzing waveforms.

At the end of the video we will build the amplifier and test the actual physical hardware on the bench.

Watch the YoutTube video: https://youtu.be/P0ELV0oO3nA

Download Project Files & Resources:

GitHub Repository (LTspice files, HTML signal generator, Gerber files, and KiCad project):

https://github.com/DesignGraveyard/V007_LTspice_26_in_5_steps

Download LTspice Simulator:

https://www.analog.com/en/resources/design-tools-and-calculators/ltspice-simulator.html

Download Gerbers Download BOM(Bill of materials)

Oct 13,2026

63 views

USB Powered Stereo Audio Amplifier for LTSpice training

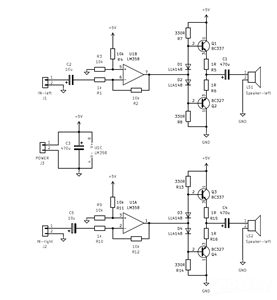

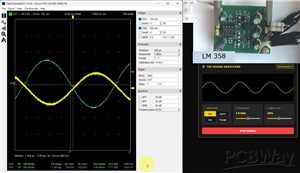

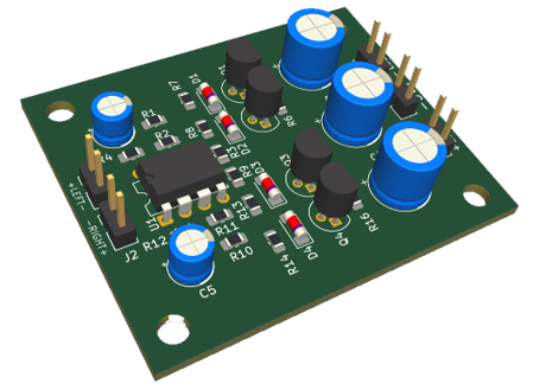

2 Layers PCB 42 x 50.5 mm FR-4, 1.6 mm, 1, HASL lead free, Green Solder Mask, White silkscreen

Small Stereo Audio amplifier built with standard parts used for an LTSpice training.
