ESP32 S3 Bad USB
# Description
ESP32’s are nice microcontrollers, but not this one! This project describes how to build a WiFi rubber ducky or “bad USB”. No programming skills are required, just buy a ESP32 S2 board and flash it with the online tool.
Watch the YouTube video, it will guide you how to build it step by step:
The precompiled software bin files include some fun examples to get you started.
The video will show you 2 build options:
- Use a standard ESP32 S2 board and flash the bin files, nice to try.

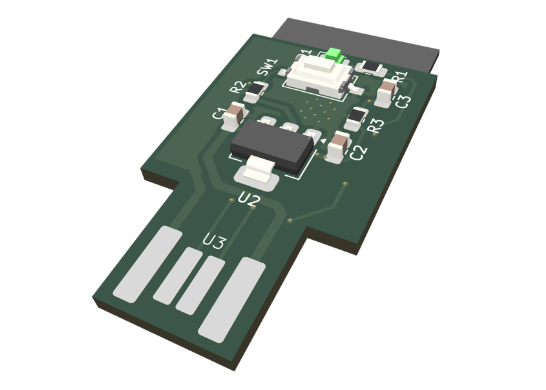

- PRO version: custom ESP32 S3 PCB. --order the PCB here at PCBWAY--
Download all software, assembly instructions at the DesigGraveyard GitHub:
https://github.com/DesignGraveyard/V001_ESP32_bad_USB
(Project is fully open, PCB files are also available at GitHub)
