Description

LM317 + NE555 Bench Power supply 0-30V / 0-1 Amp

Build a cheap and reliable bench power supply, 0–30V & 0–1A with standard components like the LM317 and NE555.

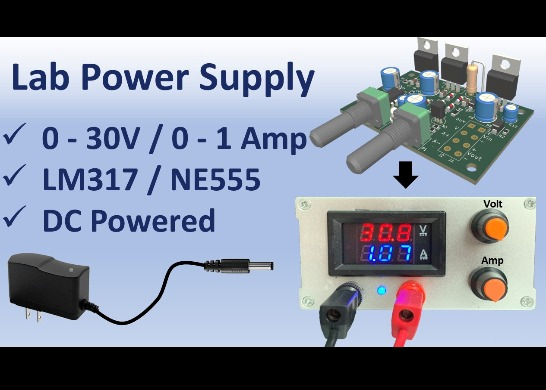

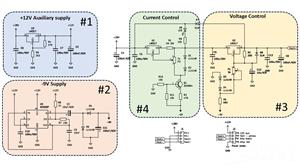

This design is based on a ON-Semiconductor application note but simplified with common “jellybean” parts and a NE555 charge pump to generate the negative voltage reference needed for output control down to 0 Volt & 0 Amp.

Check out the YouTube video with a full explanation & demonstration of this power supply:

Watch the video:

https://youtu.be/TmOTqNCIk3g

GitHub Repository:

https://github.com/DesignGraveyard/V012_DIY_0-30V_0-1A_Lab_Power_Supply

Output Range: 0–30V DC / 0–1A Adjustable Current Limit

Components: 3x LM317 regulators, 1x NE555 timer, basic NPN jellybean transistors, standard passive parts

Negative Rail: Built-in NE555 charge pump (~7 kHz) providing -9V to bypass the LM317's 1.25V minimum limit

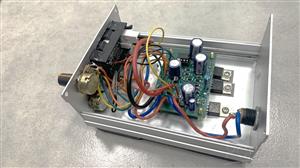

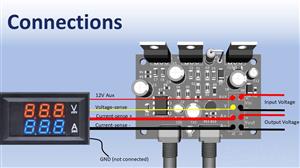

Metering: Cheap DC 100V 10A dual panel meter integration

Download Gerbers Download BOM(Bill of materials)

Oct 12,2026

85 views

LM317 + NE555 Bench Power supply 0-30V / 0-1 Amp

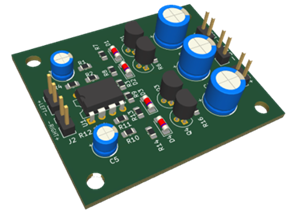

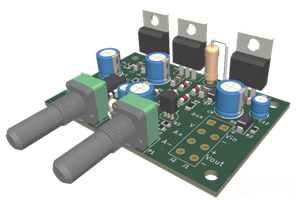

2 Layers PCB 41.996 x 61.772 mm FR-4, 1.6 mm, 1, HASL lead free, Green Solder Mask, White silkscreen

Build a cheap and reliable 0–30V, 0–1A bench power supply using standard components like the LM317 and NE555. Based on On-Semi appnote.

Published: Oct 12,2026
