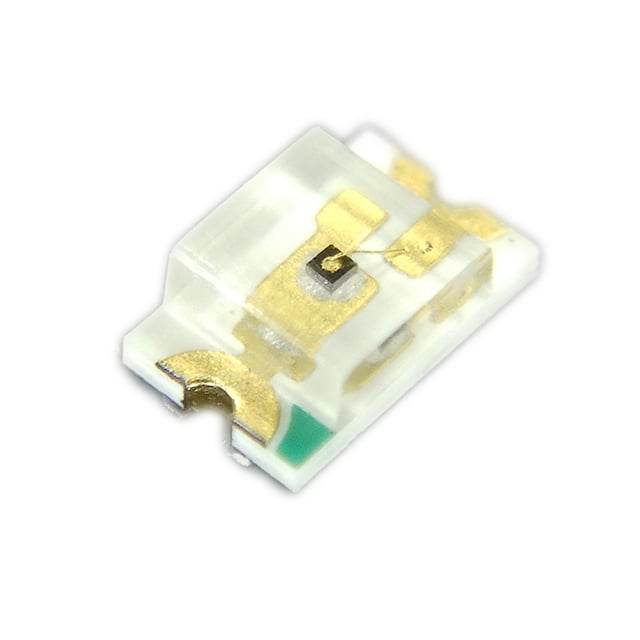

QBLP631-OQT Brightek (QTB)
|
x 1 | |
|

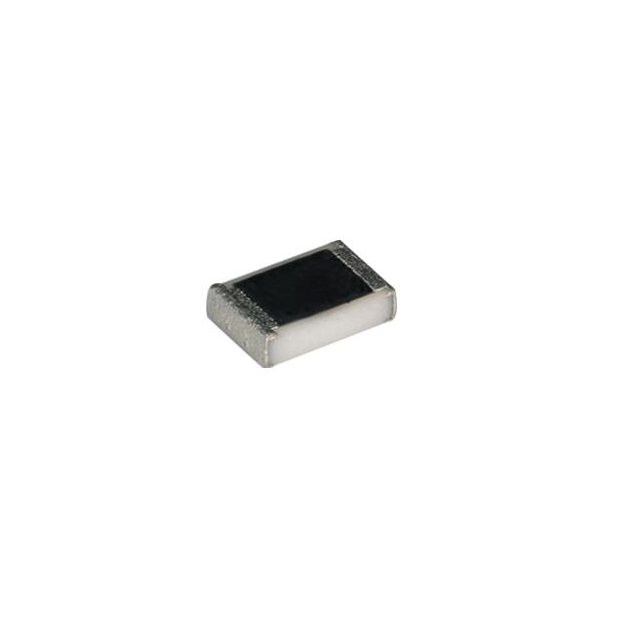

ERJ-HP6D4701VPanasonic Electronic Components
|
x 1 |
Tools, APP Software Used etc.
|
KiCad 9.0 |
Description
TF536 Flatmate

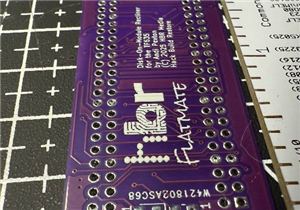

A dimple adaptor that allows the a DoM to be connected to a TF536 44pin IDE Header and lay flat above the TF board as well as providing an activity LED that is visible through the vents on the Amiga 500.
The LED is optional and the board will function without it.
You will need a 44pin female header and a right angled shrouded 44pin male header - see video for more visuals.
PCBWay Sponsored video here -> https://youtu.be/sWSRPUAONCs
Feb 12,2026
16 views
TF536 Flatmate
2 Layers PCB 24.4 x 46.5 mm FR-4, 1.6 mm, 1, HASL with lead, Purple Solder Mask, White silkscreen
The TF536 is a very common Amiga 500 accelerator which adds and IDE interface, but without an Activity LED and doesn't work well with DoM.
