Amiga 600 DIP 64 CPU Adaptor - I'll be DIPped

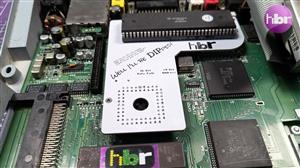

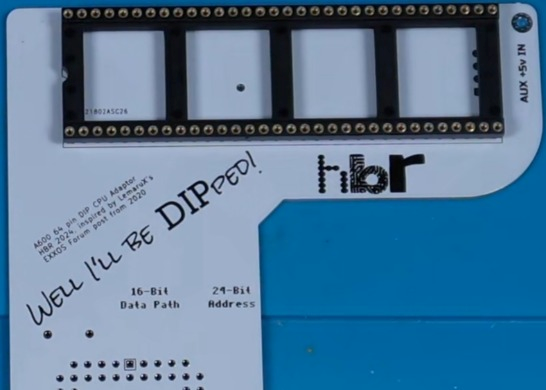

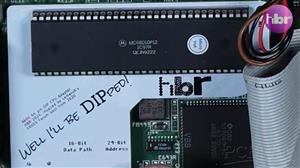

Simple 2 layer PCB to allow a DIP 64 Processor to be fitted to an Amiga 600 (can be created for $5)
Watch the video for a little more information about the project...
(Sponsored by PCBWay)
You will need
1x PLCC Socket
1x 64pin DIP (68k CPU) Socket
1x 1K Resistor
1x 220R Resistor
1x 220uf electrolytic SMD Cap
Optional - accelerator/experimental not needed
1x 470uf electrolytic SMD Cap
1x Berg Floppy Connector
and either a DIP 68000 or 68010 processor (used - no longer produced)
You will need to notch and sand down the PLCC Socket.
