Simple Amiga 600 ROM relocator and switcher

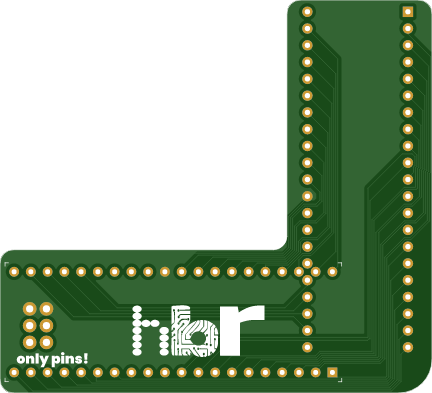

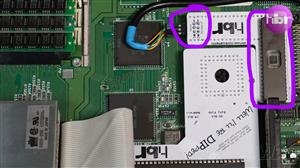

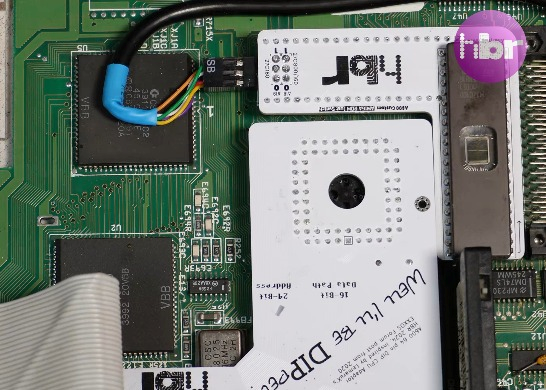

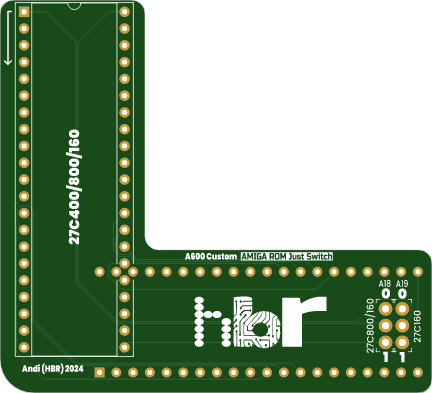

This is a rom switcher I used in conjunction with CPU adaptor for 68010, it relocates the ROM to allow the CPU Adaptor to fit and the keyboard to fit correctly.
Requires used 27C800 or 27C160 ROM - No longer produced
NOTE
- Solder the ROM direct (it will not fit with a socket installed)
- Use right angled 2x3 connector soldered to the underside

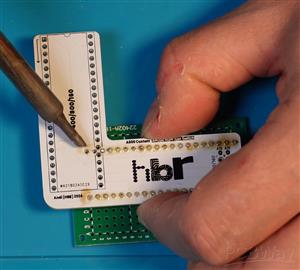

See video for notes on construction and installation, also very similar to my other ROM switchers.
(PCBWay Sponsored Video)
Jan 27,2025
536 views
Simple Amiga 600 ROM relocator and switcher
Simple A600 ROM switch for 27C800/27C160, uses either jumpers or mechanical switches.
