Description

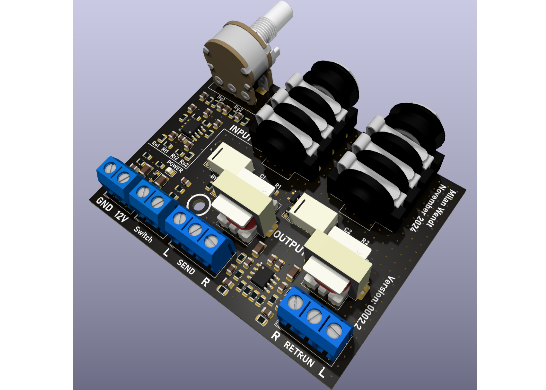

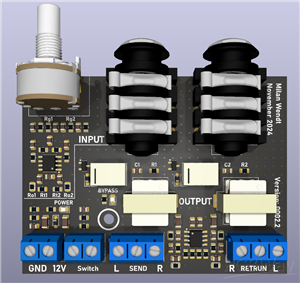

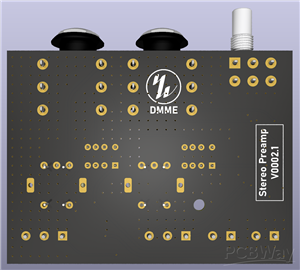

Stereo buffer & isolation V2.1
Stereo buffer | preamp with isolated output aimed at 19 Inch rack equipment. Input volume can be boosted up-to 10dB.
This design is intended to be used in a modular configuration, where it functions as the input / output stage for an audio effect or preamp.
This version includes a relay and simple switch connector for toggling the isolation on|off.
Transformer isolation:
- Zin ~1M Ohm
- Zout ~600 Ohm
- THD+N @ 1kHz ~0.05% (Increased THD below ~200Hz).
- SNR ~100dB
- Crosstalk ~70dB
- For a flat (±1dB) frequency response: requires an additional load on the output of 680Ohm in series with 10nF.
Without transformer isolation:
- Zout ~0.3 Ohm
- THD+N improves to ~0.0015%
- Frequency response improves to ±0.04dB

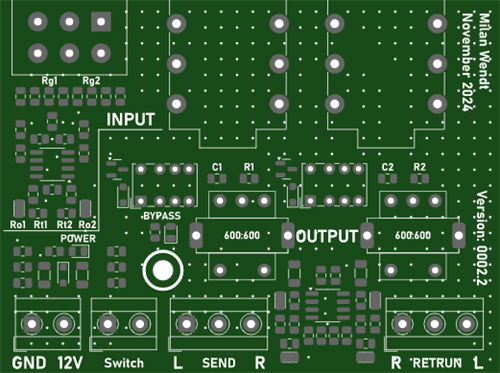

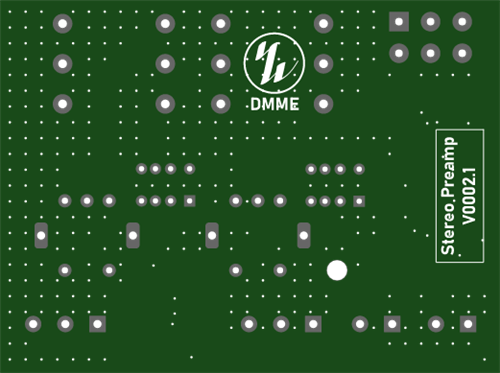

Schematic and Layout
Schematic V2.1.pdf
Interactive BOM
Aug 22,2025
218 views
Stereo buffer & isolation V2.1
Stereo buffer module designed for DIY rack equipment for guitar / instruments.
218
0
0
Published: Aug 22,2025
Standard PCB
Download Gerber file 7
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-NonCommercial (CC BY-NC)
License.
Topic
- Comments(0)
- Likes(0)
Upload photo
You can only upload 5 files in total. Each file cannot exceed 2MB. Supports JPG, JPEG, GIF, PNG, BMP
0 / 10000
More by Milan Wendt
-

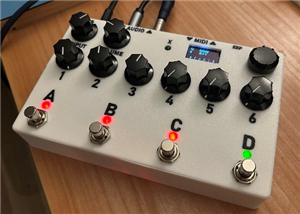

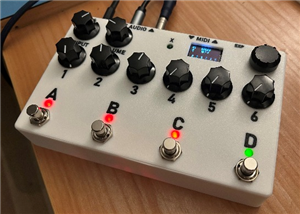

RP2040 Multi-effect Pedal - Mainboard V2.1
