Description

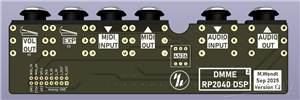

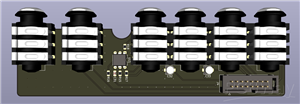

RP2040 Multi-effect Pedal - Daughterboard
These are the files for the V1.2 | V2.1 daughterboard. SMD components are compiled in the BOM for PCBA.
As it creates extra complexity by having these two board in the same project, please see my other projects for the daughterboard.
Separating them streamlines the review and production process for PCBWay.
I2S modules, THT parts, and connectors need to be soldered manually.
or the full list of components, see the ibom.html file in the repository on GitHub:
Code
Code repository on GitHub
https://github.com/DMME-NL/RP2040-DSP-Public
Schematic and Layout
PCB files and KiCAD project
https://github.com/DMME-NL/RP2040-DSP-Public/tree/main/Hardware/RP2040-DSP_V2.1
CAD-Custom parts and enclosures
Enclosure file for 3D printing
https://github.com/DMME-NL/RP2040-DSP-Public/tree/main/Hardware/Enclosure
Sep 11,2025
167 views

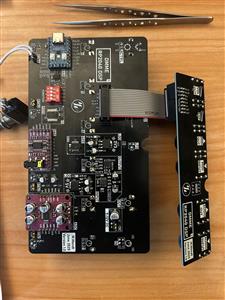

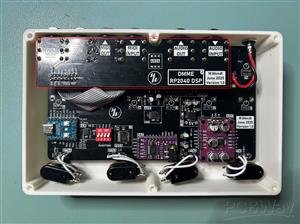

RP2040 Multi-effect Pedal - Daughterboard

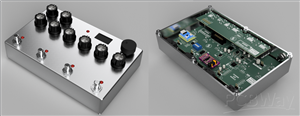

RP2040 DSP multi-effects pedal designed for guitar:
https://github.com/DMME-NL/RP2040-DSP-Public.git
