The official Sovol enclosure for the SV08 MAX is a stunningly good-looking case, but contrary to Sovol’s claim of only taking away 100mm of Z-height, we found it actually limits the build height by a pretty substantial 150mm.

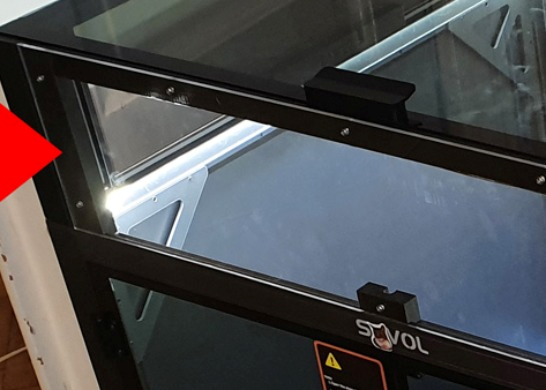

This is a combination of 3D-printed and laser-cut acrylic parts. The transparent acrylic lets plenty of light in, and it makes the entire riser incredibly light-weight.

The 4 panels are each 625x1504x3 mm (sides 613x154x3mm), included as STL (front, left, back, right), and also as DXF / SVG / LBRN2 format for Lightburn. If you don’t have a CO2 laser capable of cutting the transparent acrylic PCBWay expands the range of DIY projects we can tackle, saving us from having to own expensive and rarely needed machines. They complete laser-cut projects like this in a matter of weeks, so we'll be able to take you through the installation.

You can order your custom-cut acrylic panels!

The 3D printed parts are included in the Cults3D project (about 1kg of ABS/ASA/PETG):

► 4 corners (secured to the top frame of the printer)

► 4 bridges (secured to the upper edges of the panels)

► 4 supports (secured to the top frame of the printer and the bottom center of the panels)

Follow up video coming soon on my channel.
