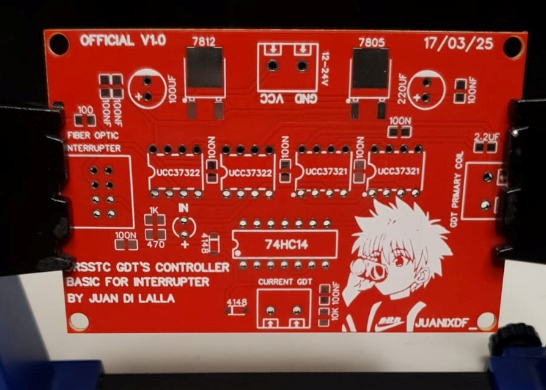

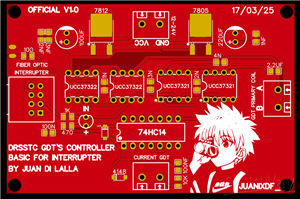

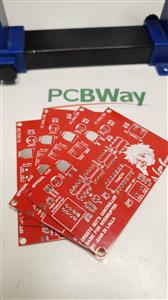

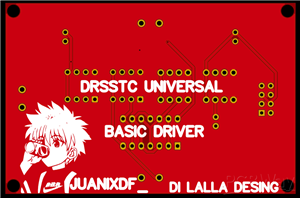

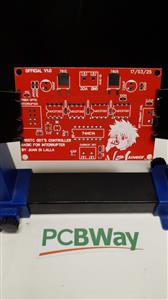

Simple Universal Diver for DRSSTC
This driver is designed to be economical and easy to make. It only requires two GDTs for use. It's not recommended for high-power DRSSTCs because it lacks protection. However, if you're looking to get started with DRSSTCs and start with something small, it'll be more than fine.
May 03,2025
206 views
Simple Universal Diver for DRSSTC
simple driver universall for smalls drsstc with ucc37322 and ucc37321
