Description

SCART Breakout PCB. Useful for connecting SCART to the GBS-8200 and other Video convertor boards

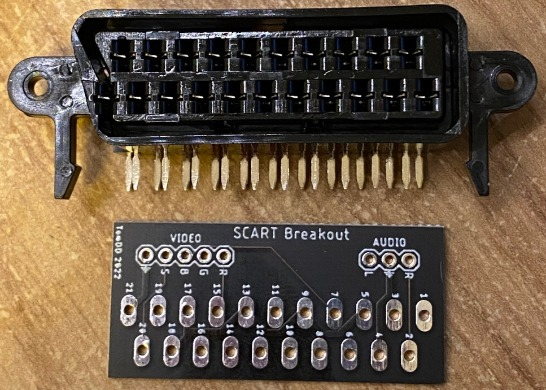

SCART breakout PCB gives easy access to (R)ed, (G)reen, (B)lue, (S)ync (composite video), Video Ground & Audio (Left, Right & Ground). Useful for connecting SCART to the GBS-8200 and other Video convertor boards.

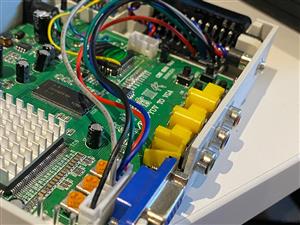

Photos shows it wired up with a GBS-8200 VGA convertor board using gbs-control custom firmware. 3D Printed case is available on Thingiverse

Due to the size I recommend getting these as a panel, I had them made 4x8.

CAD-Custom parts and enclosures

Case

GBS-8200_Case_with_SCART___Wemos_D1_Mini_Wifi_for_GBSControl_5363666.zip

Jan 08,2023

4,002 views

SCART Breakout PCB. Useful for connecting SCART to the GBS-8200 and other Video convertor boards

SCART breakout PCB gives easy access to (R)ed, (G)reen, (B)lue, (S)ync (composite video), Video Ground & Audio (Left, Right & Ground).
