Description

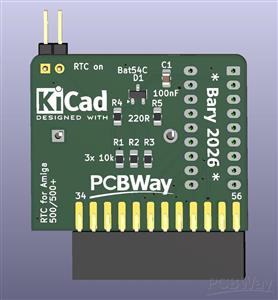

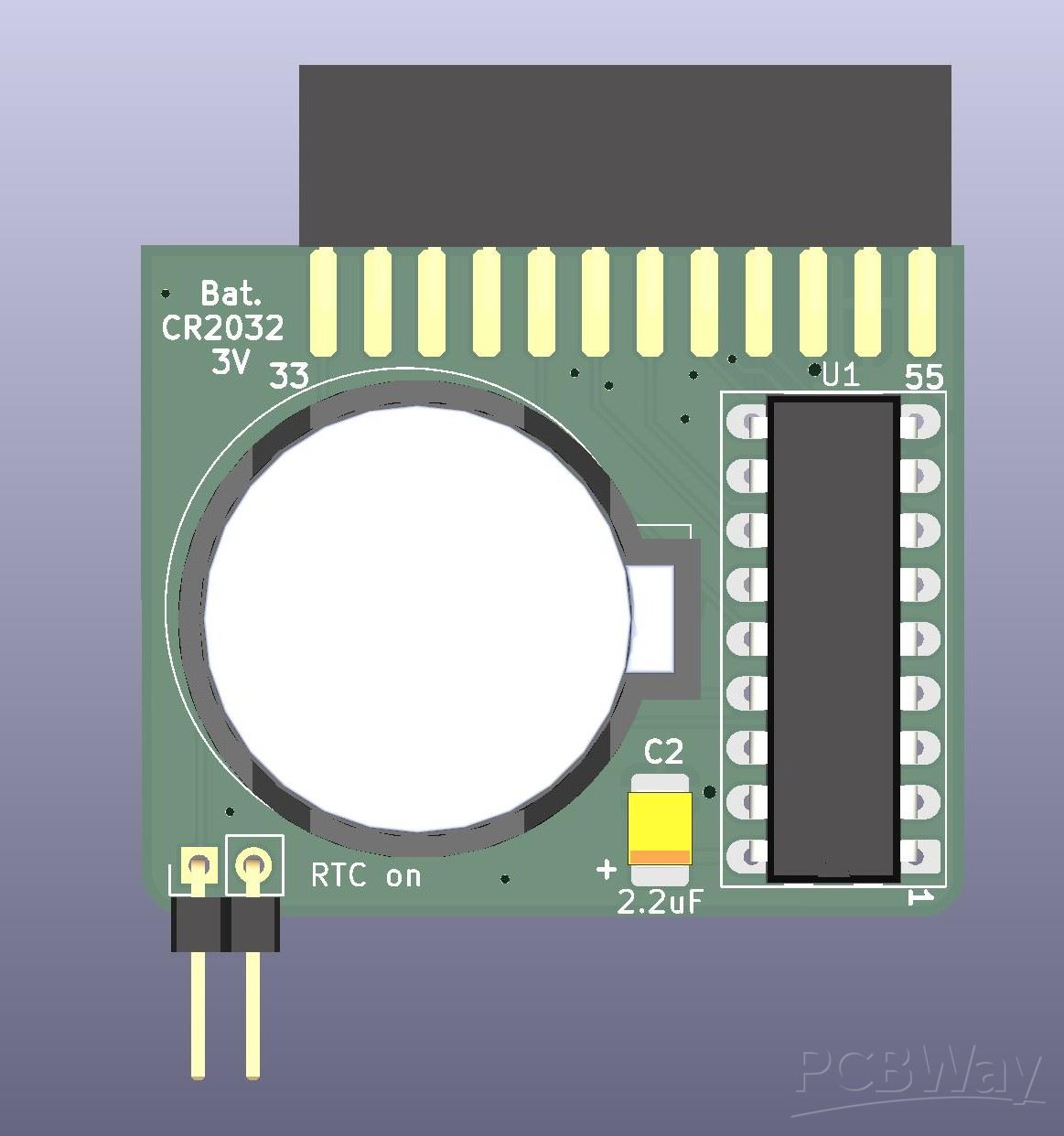

RTC for Amiga 500
RTC (Real Time Clock) module for the Amiga 500
used on its own plugged into a trapdoor
Components:
3x resistor 10kΩ 0805 - R1,R2,R3
2x resistor 220Ω 0805 - R4,R5
1x diode BAT54C sot23 D1
1x capacitor 100nf 0805 C1
1x capacitor tantal 2,2uF 1206 C2
1x IC RTC62421 U1
1x CR2032 battery holder case BS-7 BT1
1x 2 pin angles 2.54mm (jumper) JP1
1x Goldpin strip 2x12 female 2.54mm pitch J1
1x CR2032 Lithium cell battery 3V (non-rechargeable)
