IMPORTANT

Please see this PDF file showing the required PCB specifications.

https://github.com/corndog2000/RGB-LED-Matrix-Input-Module/blob/main/PCB-Specifications.pdf

NOTE

If you buy the PCBs+Assembly from PCBWay then you will only receive the PCBs. You will not get the plastic and metal parts that are needed to use on the laptop. Soldering is not needed to assemble the modules. If you buy PCB+Assembly from PCBWay then all parts are soldered. I am considering options to provide the needed mechanical parts.

What is it?

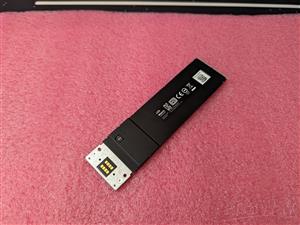

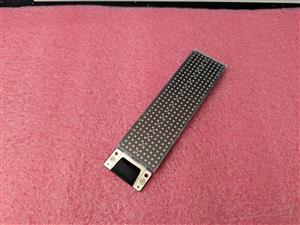

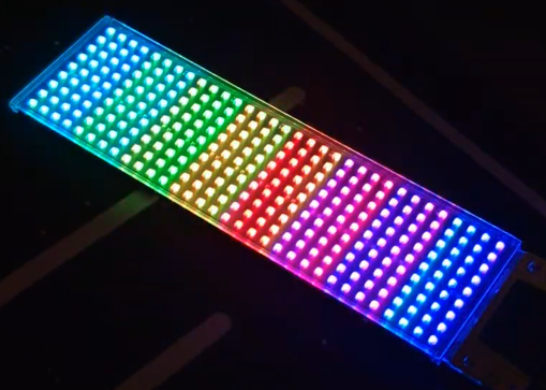

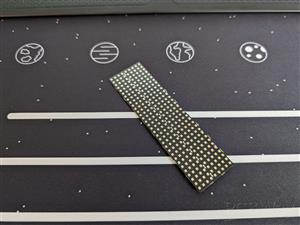

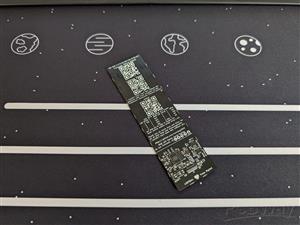

RGB LED Matrix input module for the Framework Laptop 16. This module can go on either side of your keyboard to show notifications, animations, system information, and whatever else you can imagine! This module uses an RP2040 microcontroller. The module can be easily programmed with Circuit Python, the Arduino Core, or the Pico SDK!

Why did you make it?

I had a crazy idea when I saw the Framework Laptop 16 announcement that there should be an RGB version of the LED matrix module. Here we are now over a year from the initial Framework Laptop 16 announcement live stream. Also, who doesn’t need RGB on their computer?

What makes it special?

I received an incredible amount of help and encouragement from the whole Framework community! I can’t thank these amazing members of the Framework Discord server enough. Thank you, Arya, Josh Cook, Adam Hill, the entire moderation team, and countless more members of the Discord server.

I have to give a massive thanks to Nirav Patel, the founder of Framework, for providing engineering documents and hardware that made this product possible!
