QuadC_RP2040
DESCRIPTION
Quad-C_RP2040 is developed using the RP2040 microcontroller, featuring a four-core architecture with intercore communication. It follows a master–slave configuration for synchronized and coordinated task execution. This design enhances scalability and performance compared to the previous Quad-C version.
FEATURES
● Four cores with intercore communication support.
● One master and three slave cores for coordinated control.
● Individually programmable cores for flexible task allocation.
● Selective core utilization based on application needs.
● Improved scalability and processing efficiency over the previous design.

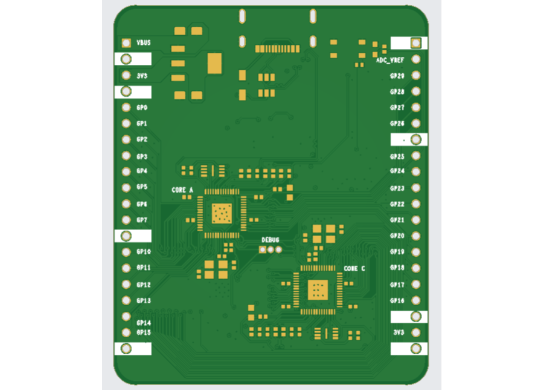

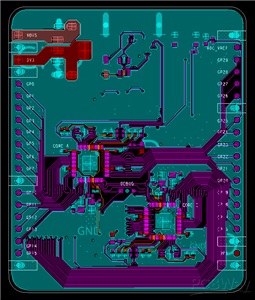

QuadC_RP2040
